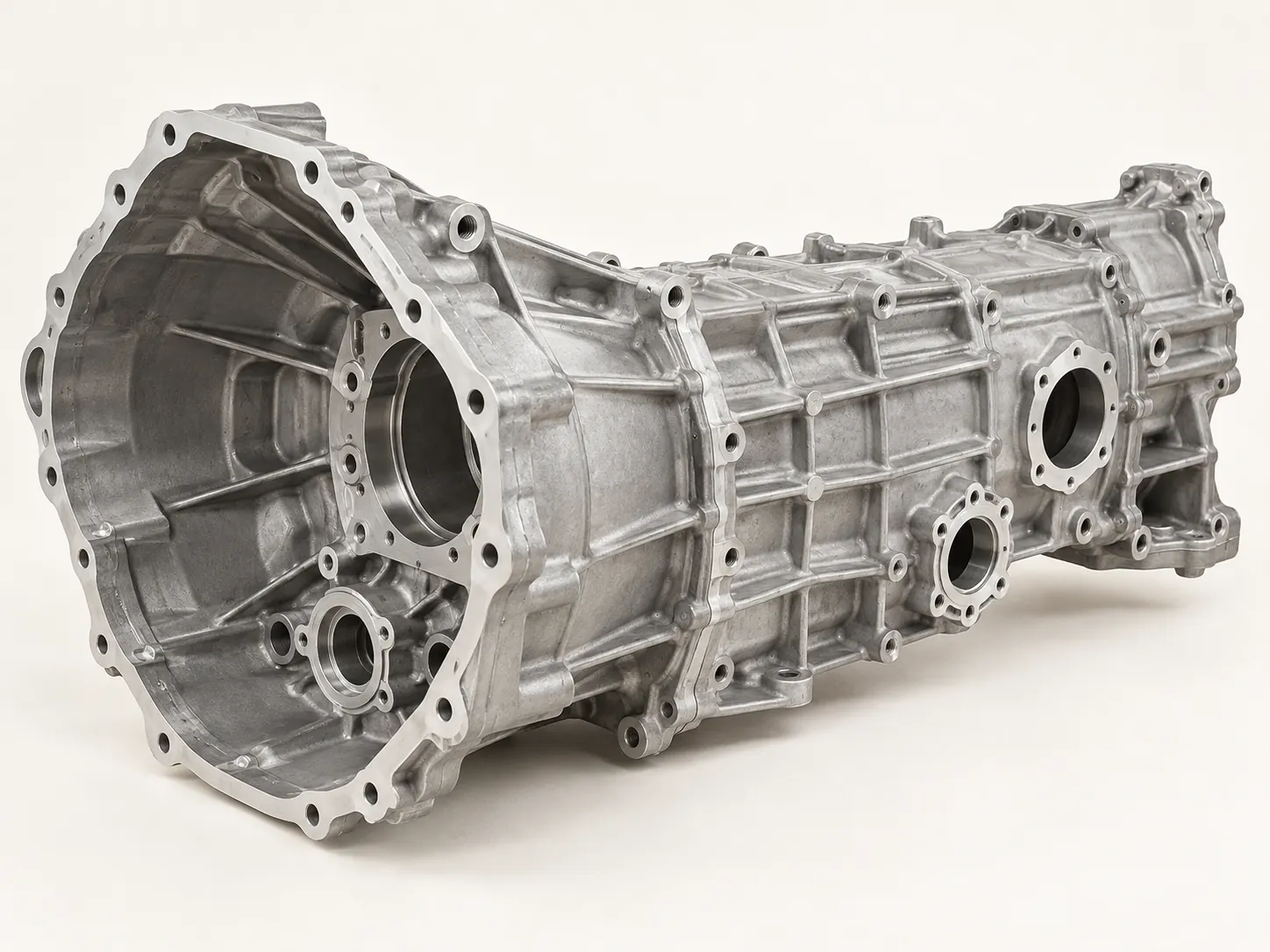

Transmission case
Large housing with multiple assembly interfaces.
AUTOMOTIVE MOLD TOOLING
Automotive Aluminum Die Casting Molds
Custom mold tooling for transmission, auxiliary and vehicle electrical housings. Start with clear 2D or 3D part drawings, or an assessable physical sample. One mold set is welcome.
Mold-only service · One mold set welcome
Custom mold toolingFor your actual automotive part
Drawings or sampleThe basis for a formal quote
Trial before shipmentYou test samples before mold handover
AUTOMOTIVE APPLICATION EXAMPLES
Automotive Components That Can Start a Mold Project
Explore nine distinct component examples across three application groups. Your actual part drawing or sample determines the mold scope; these images are illustrations, not completed customer projects.
Drivetrain housings
Complex cast geometry, mating faces and shaft locations.

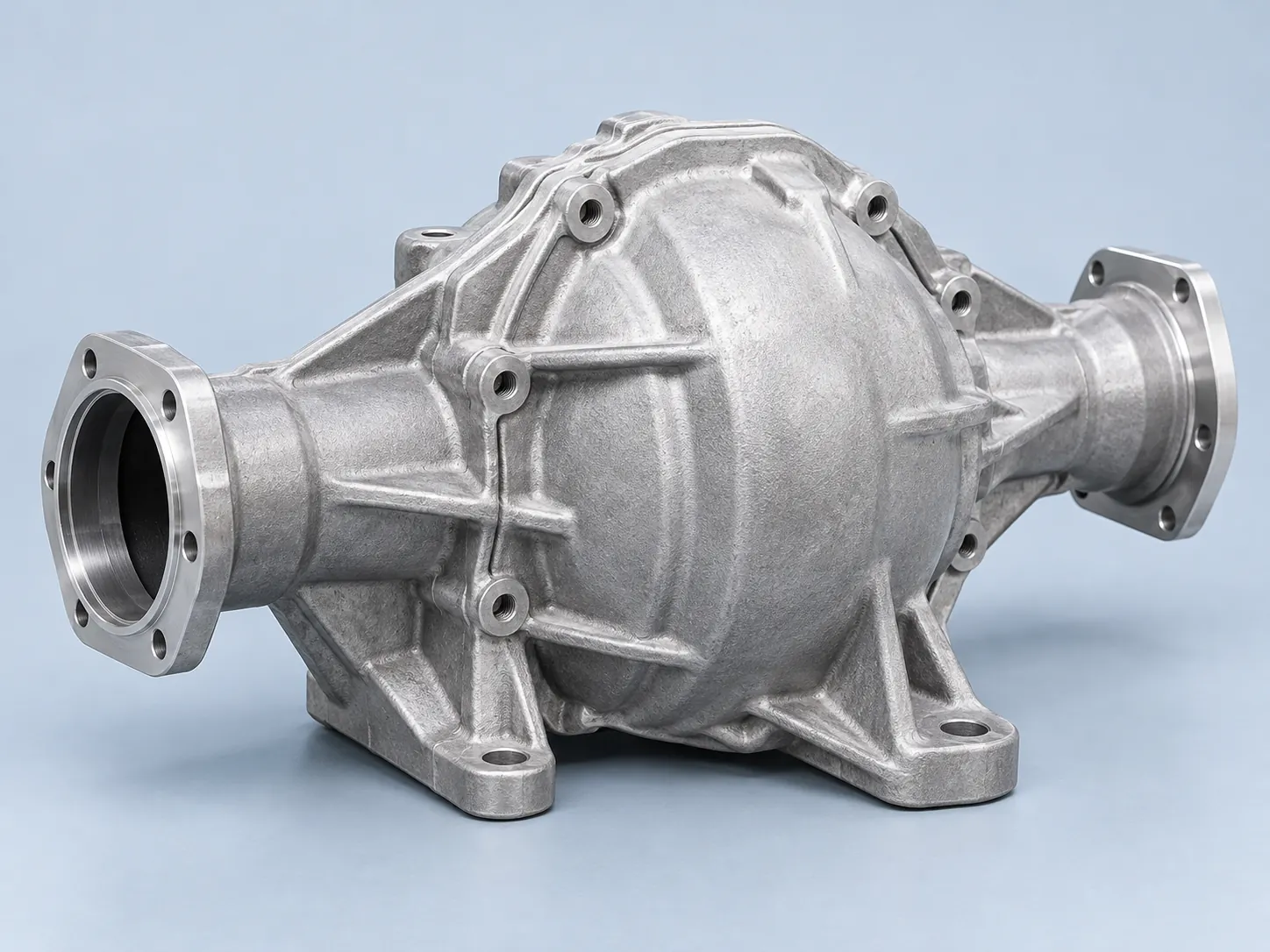

Differential housing
Round gear chamber and mounting features.

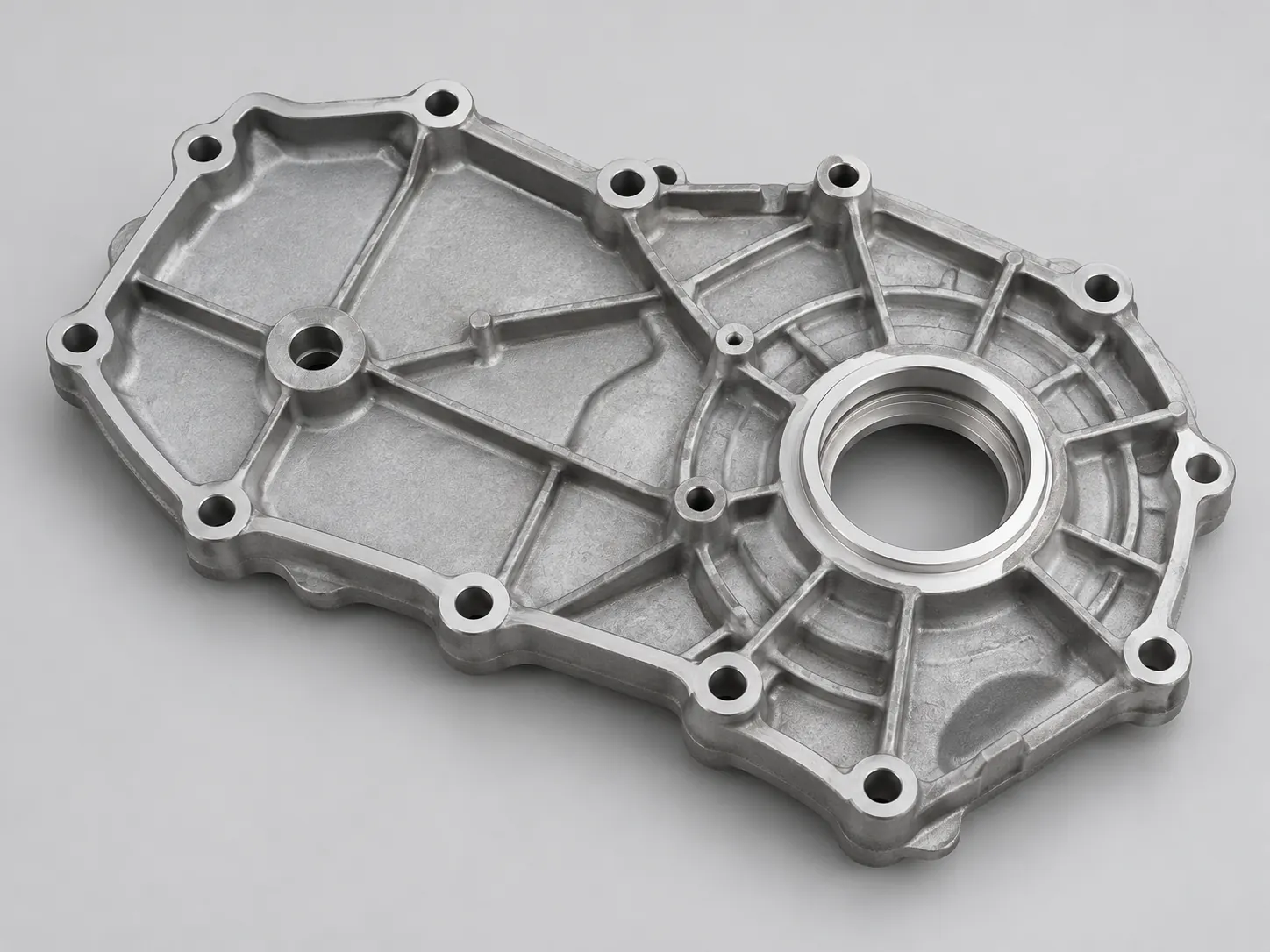

Gearbox end cover
Cover geometry and interface details.
Automotive auxiliary housings
Distinct shapes for accessory and actuation systems.

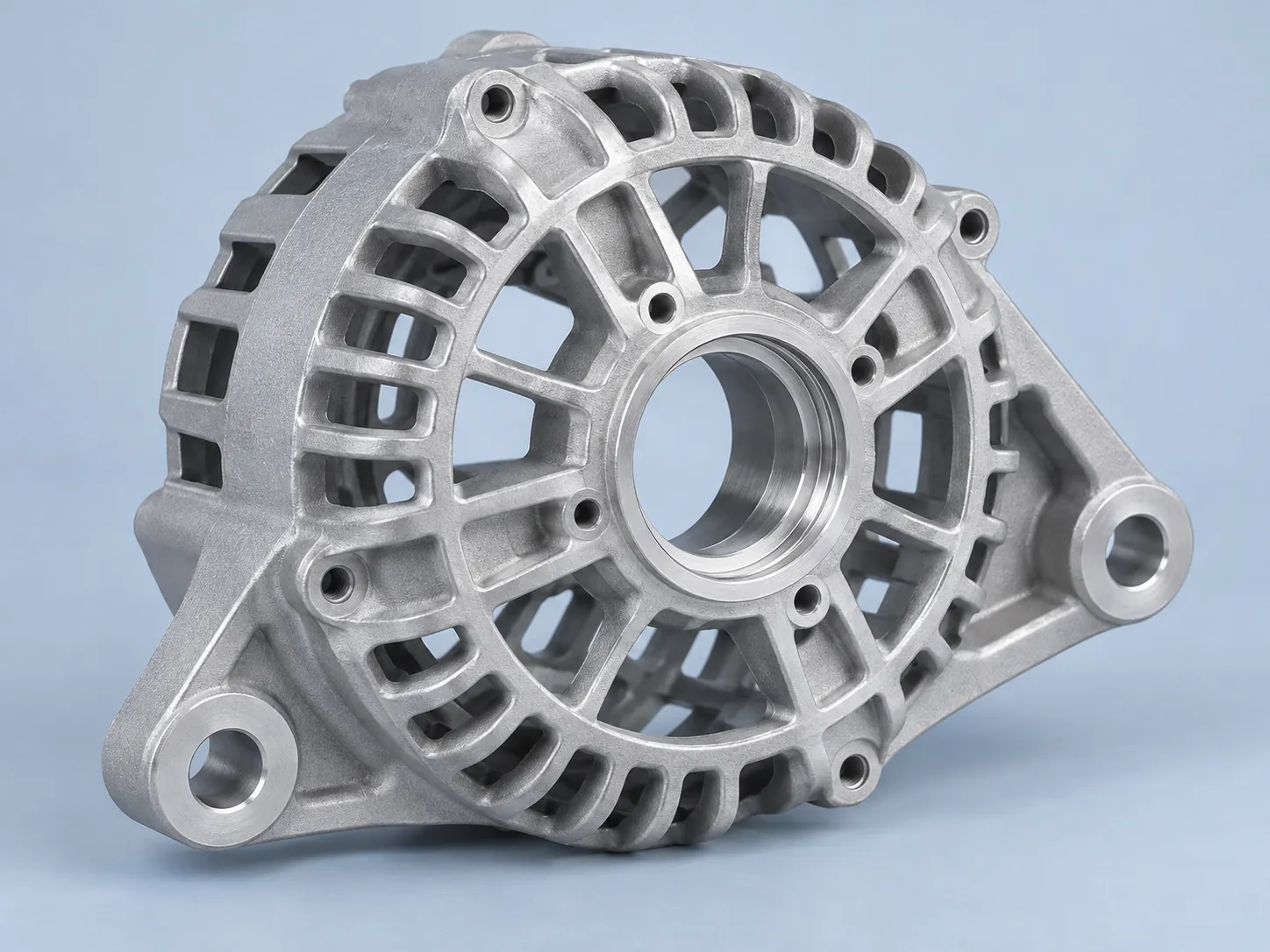

Alternator housing
Vented frame with mounting ears.

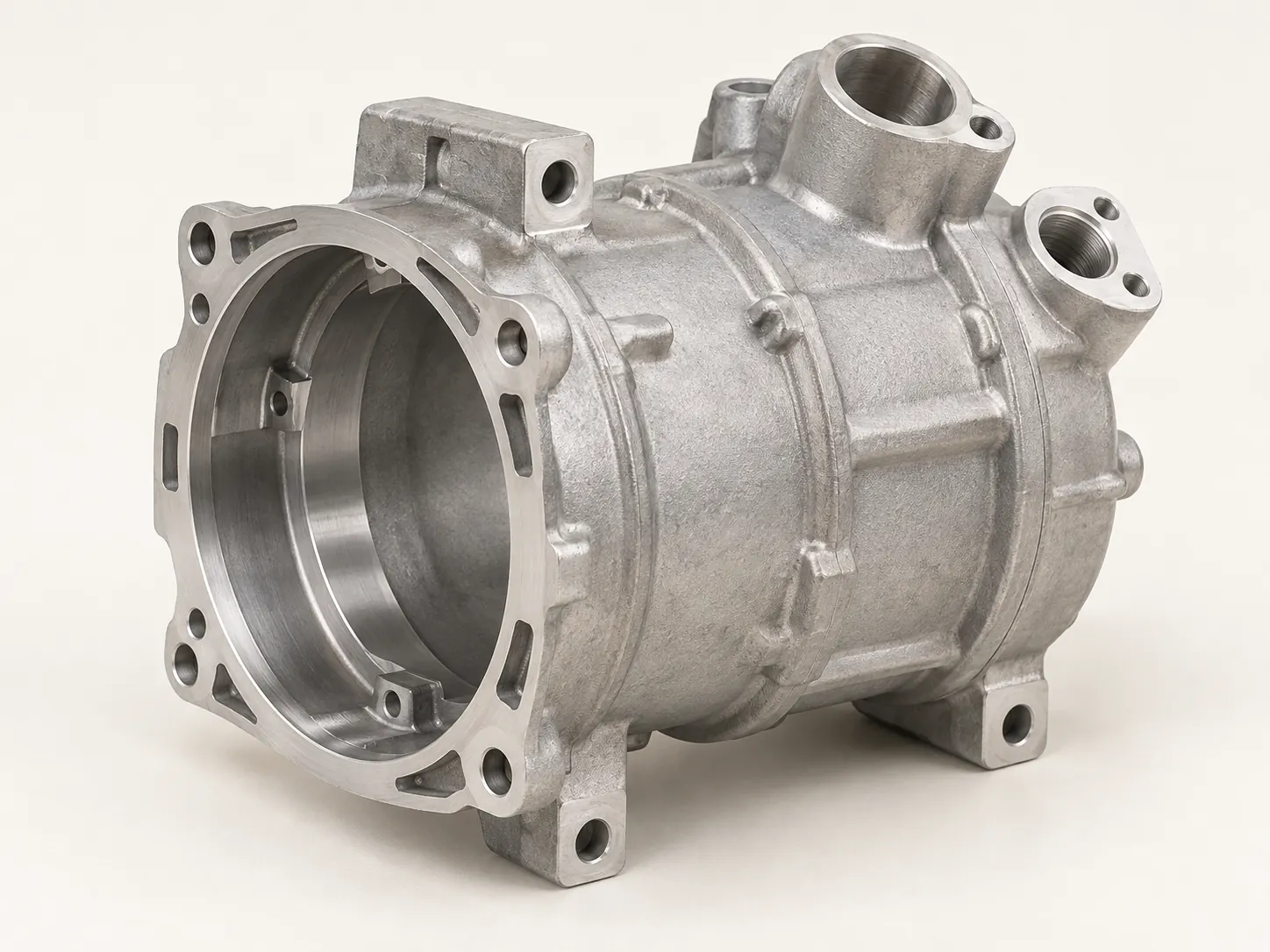

Compressor housing
Cylindrical shell and pipe connection bosses.

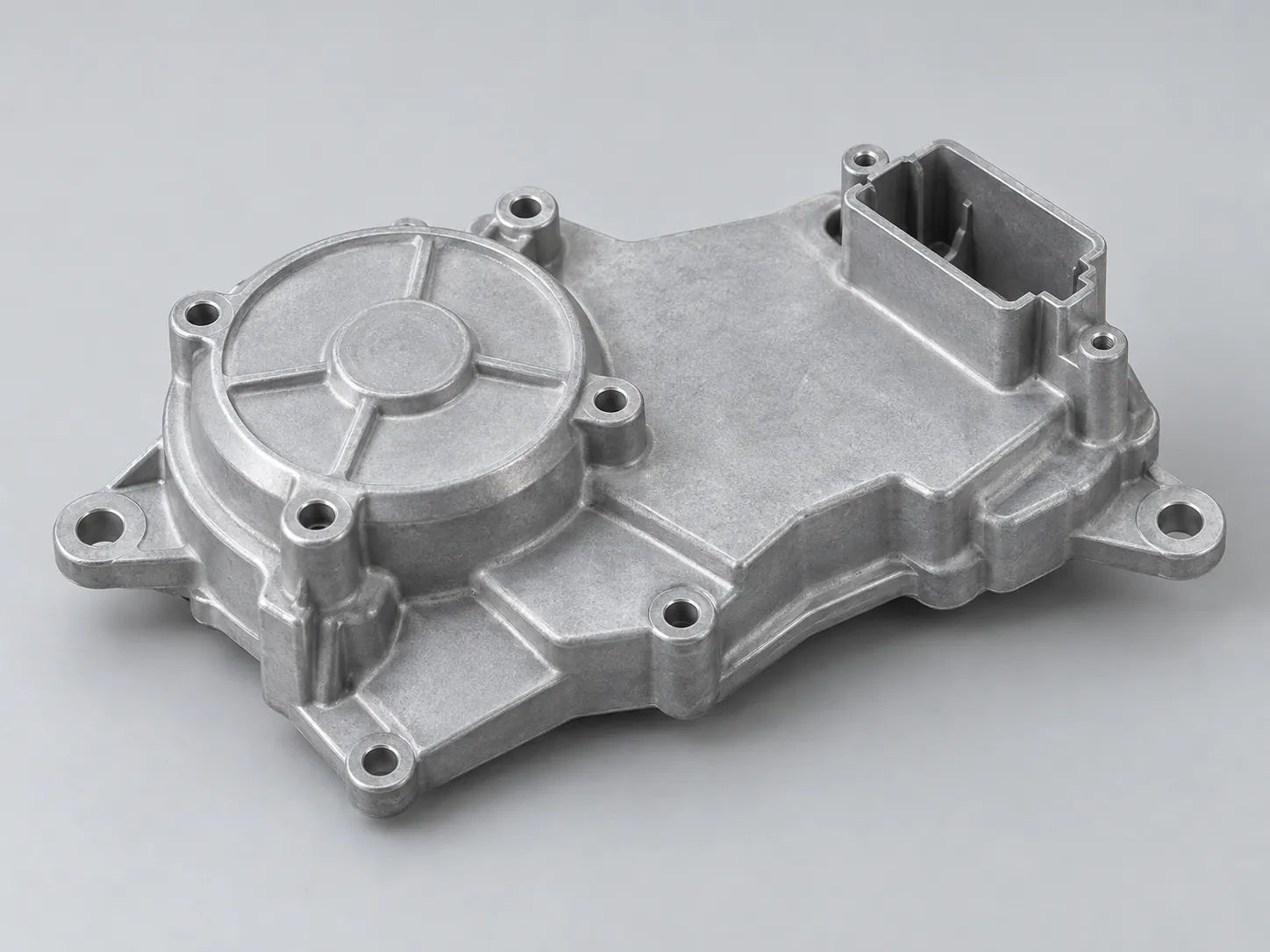

Actuator enclosure
Compact cast body with mounting and connector features.
Vehicle electrical enclosures
Project-specific enclosures and covers for EV applications.

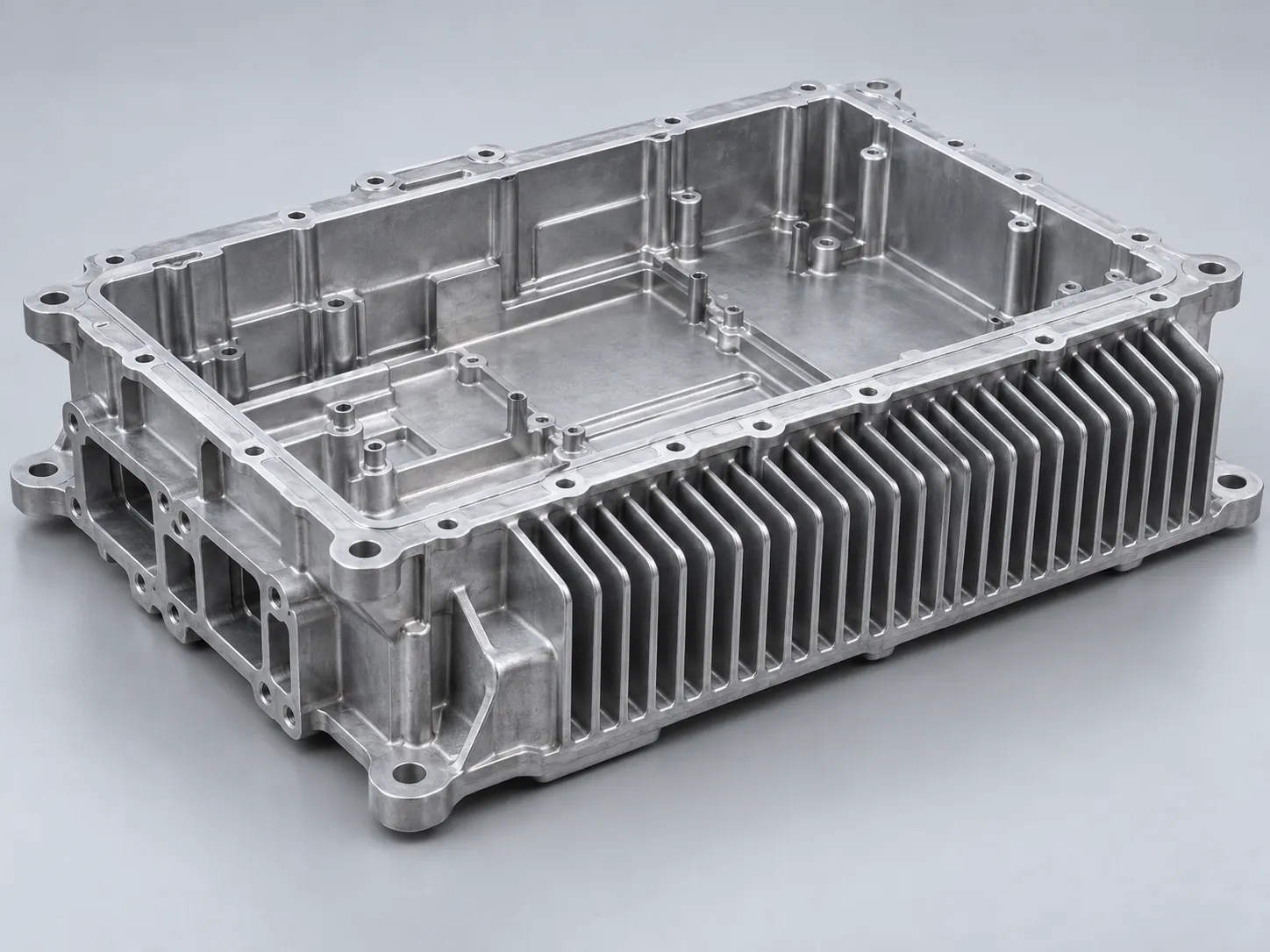

Inverter enclosure
Ribbed housing with internal compartment.

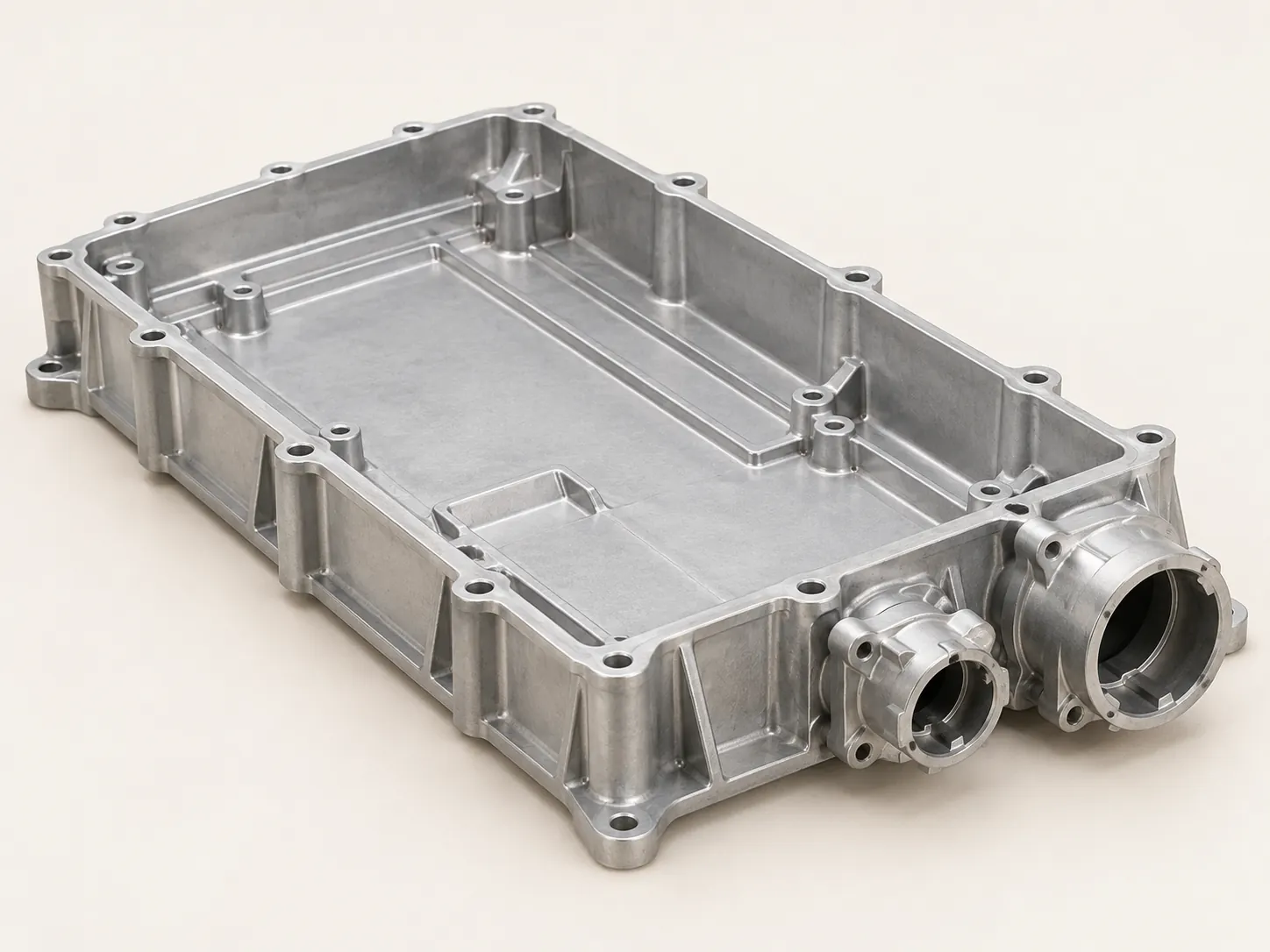

Onboard charger housing
Shallow enclosure with connector openings.

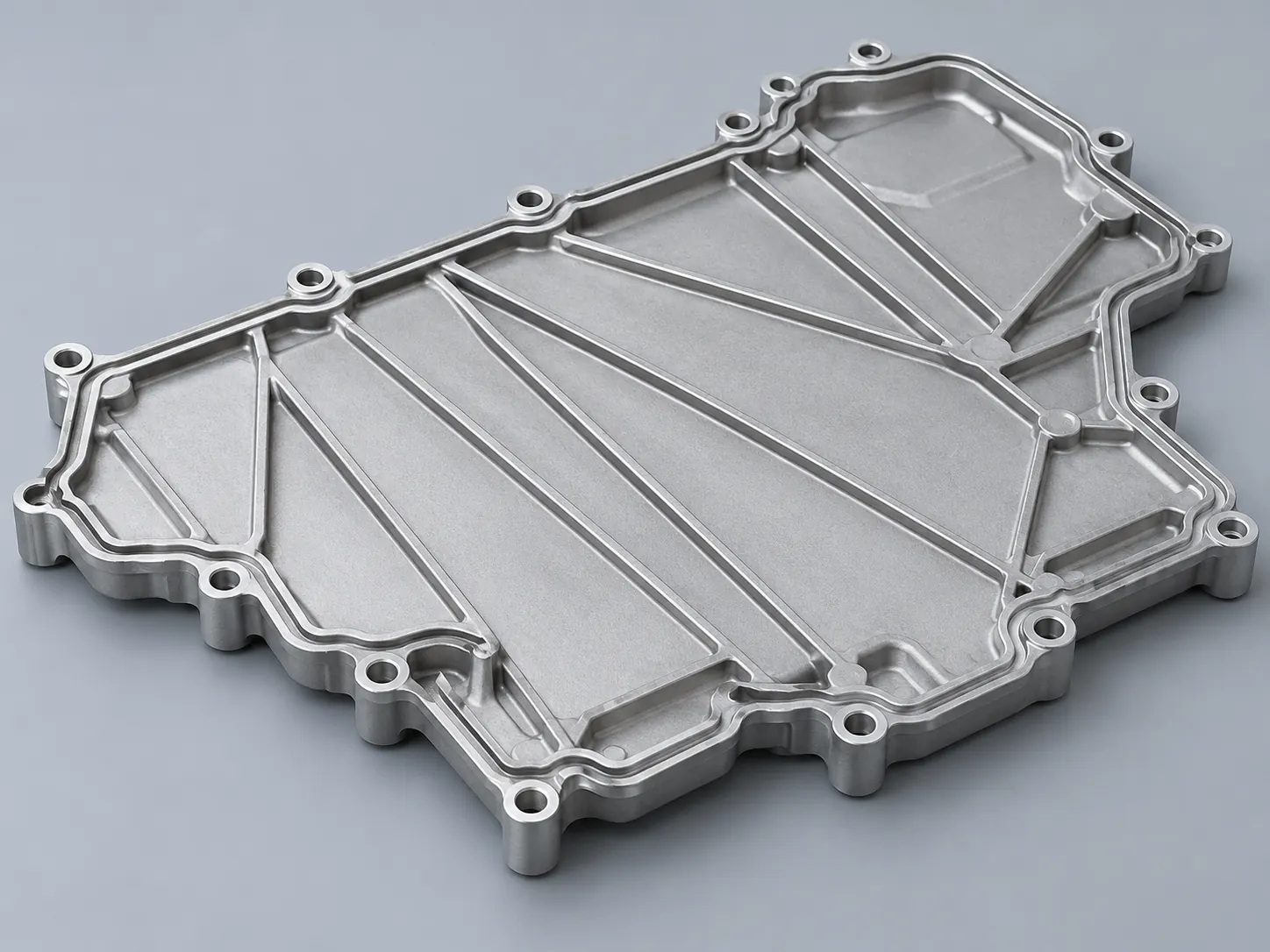

Motor controller cover
Low-profile cast cover with reinforcement ribs.
All component images are generated illustrations, not delivered customer cases. Mold suitability and quotation depend on your drawing or assessable sample.
MOLD PROJECT SCOPE
Start with Your Component, Not a Standard Mold
An automotive housing, cover or bracket can require a very different mold from another part with a similar name. Share its current revision, intended assembly and any customer-specific acceptance requirements. We assess the mold for the component you submit.
We coordinate custom mold development through manufacturing partners. The deliverable is the finished mold, with trial samples for your testing; we do not take ongoing die casting production orders.
01 / PARTPart geometry & revision02 / ASSEMBLYMating surfaces & interfaces03 / HANDOVERReceiving factory requirements
PREPARE YOUR INQUIRY
What to Include with Your Automotive Mold Inquiry
Clear 2D or 3D part drawings are the best starting point for a formal quote; STEP or STP is preferred when available. An assessable physical sample is another route. Photos can begin a preliminary discussion.
Start With Your Drawings- 01
Current drawing revision and part number, if available
- 02
Mating faces, mounting holes and critical assembly interfaces
- 03
Areas planned for machining after casting
- 04
Any receiving-factory machine or mold interface requirements
FROM REFERENCE TO HANDOVER
Design Approval, Trial Samples and Mold Handover
After payment, we prepare a 3D mold design for your approval. Manufacturing starts after you confirm it. We then run a mold trial and mail samples for your testing. Once you approve the samples, we ship the finished mold.
- 01
Product reference
Send current part drawings or discuss an assessable sample.
- 02
Quote & payment
Agree the mold scope and project terms.
- 03
Design approval
Confirm the 3D mold design before manufacturing.
- 04
Mold trial
We make the mold and send trial samples for your testing.
- 05
Mold shipment
The finished mold ships after sample approval.
A typical mold project is approximately 30–40 days from payment. The actual scope, approval milestones and shipping arrangements are confirmed for each project.
See the Full Mold ProcessBEFORE YOUR INQUIRY
Project Questions
Yes. One mold set is welcome. We quote from clear part drawings or an assessable physical sample and agree the project scope with you.
Photos can start a preliminary discussion. A formal mold quotation needs clear 2D or 3D product drawings or an assessable physical sample.
Yes. STEP or STP files are preferred when available. Clear 2D product drawings can also support the review.
After payment, we prepare the 3D mold design and send it for your approval. Manufacturing begins after you confirm the design.
No. We currently supply custom molds. Trial samples are made for your testing before the finished mold is shipped.
YOUR NEXT MOLD PROJECT
Start with Your Automotive Part
Upload a clear part drawing or describe the physical sample you can provide. We will review your mold inquiry and follow up about scope.
