MOLD APPLICATIONS

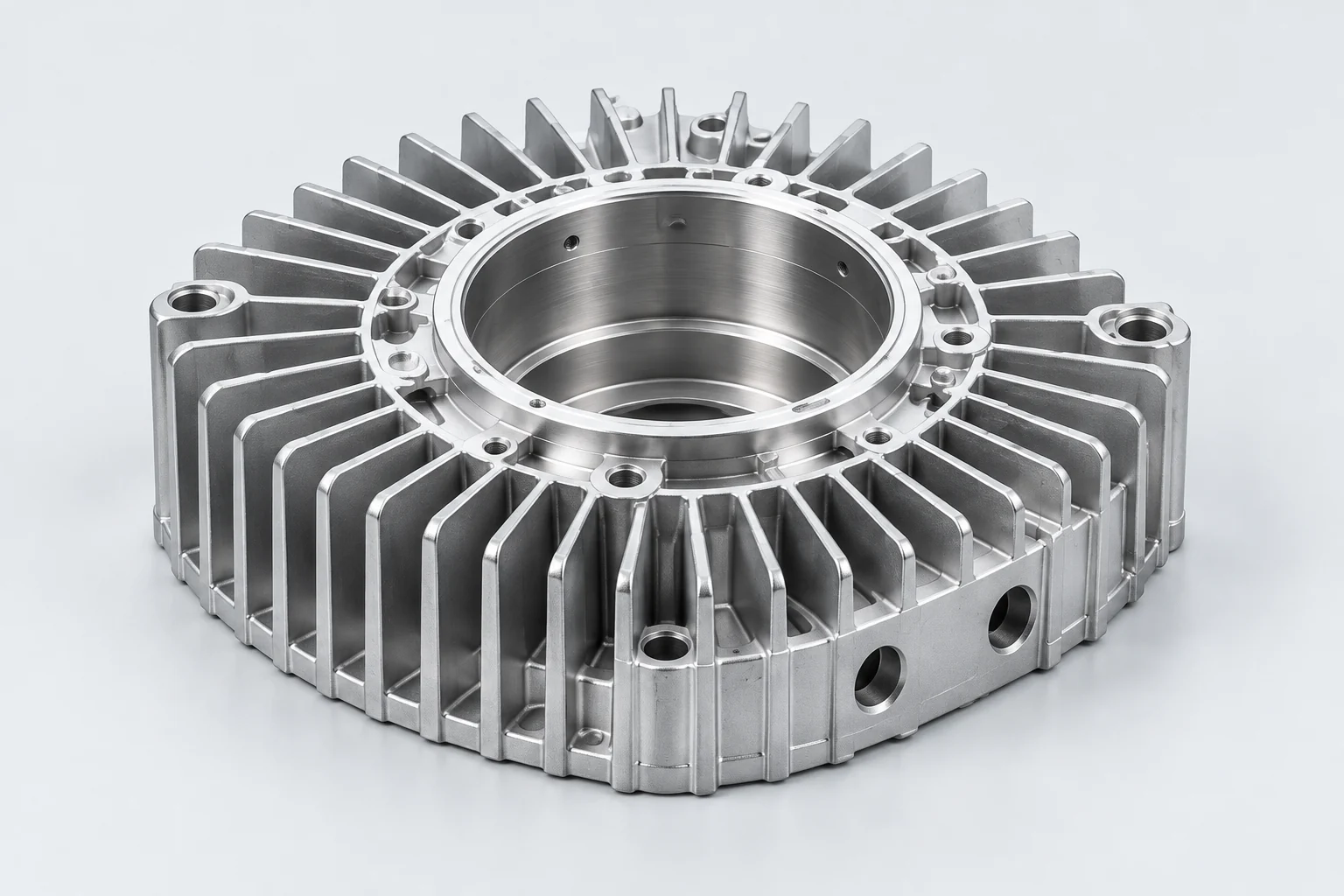

Custom Aluminum Die Casting Molds for LED Lighting
Develop a mold for the lighting component your product needs.
Request a Mold Quote
More about this project
Street light housings, floodlight bodies and industrial light housings are examples of projects to discuss. EXACTMEC accepts mold orders from one set. Clear product drawings or a physical sample are required for quotation; an initial inquiry can start with your project details.
YOUR COMPONENT, YOUR REQUIREMENTS
Describe the lighting assembly
01
Describe the Housing as Part of a Light Assembly
A lighting housing needs to be discussed together with the parts it meets.
Project details
A lighting housing needs to be discussed together with the parts it meets. Explain where the lens, cover, driver compartment, bracket or other hardware sits. Identify the housing version you want quoted, especially if your product range includes several wattage or body size options. A family of related products does not necessarily use one identical mold.
Start with the component that is closest to purchase. Further versions can be reviewed once their differences are clear.
A physical sample
An assessable product sample. Discuss arrangements before sending it.
02
Tell Us Which Surfaces and Features Matter
Show visible surfaces, planned coatings, fastener positions and areas used for assembly.
Project details
Show visible surfaces, planned coatings, fastener positions and areas used for assembly. If your design includes ribs or fins, provide their geometry in the product drawings. Explain any requirements associated with heat management or environmental protection, and identify the documents that define them. Those needs must be reviewed for the individual project.
We do not infer a thermal rating or an ingress protection rating from a housing image. State the intended product requirements instead of relying on appearance alone.
- 01Lamp assembly
- 02Housing requirements
- 03Sample checks
03
Prepare Product Information for a Quote
Send clear 2D or 3D product drawings, or discuss a physical sample.
Project details
Send clear 2D or 3D product drawings, or discuss a physical sample. Include overall dimensions and indicate which surfaces will receive later machining or finishing. If the sample is coated, explain whether the drawing represents the underlying casting or the finished product. That distinction can affect what needs clarification before a mold price is prepared.
Also tell us where the mold will run and whether the receiving manufacturer has interface requirements. We quote the mold; we do not offer lighting component mass production.
DISCUSSION CHECKLIST · NOT A TEST REPORT
- Housing and cover relationship
- Identify what is known.
- Defined appearance and surface areas
- Explain the requirement or difference.
- Mounting and thermal feature requirements
- Flag anything still to be agreed.
04
Confirm the Mold Design, Then Test Samples
After payment, we prepare a 3D mold design for your review.
Project details
After payment, we prepare a 3D mold design for your review. Mold manufacturing starts only after your design confirmation. Once the mold is made, we trial it and send samples for your testing. Before that stage, tell us which assembly and appearance checks your team plans to make. The mold is sent after you confirm that the samples are acceptable.
About 30–40 days from payment is the current indicative schedule. Exact milestones, sample transport and final shipment are agreed for your project.
BEFORE YOUR INQUIRY
Project Questions
Yes, a physical sample can be reviewed for quotation. Tell us about any intended changes, coatings and surfaces that differ from the sample.
No. Our current offer concerns the custom aluminum die casting mold. LEDs, drivers and lighting system supply are not included in this website offer.
No general rating is promised. Share your requirements so the mold project and the customer's intended sample checks can be discussed.
YOUR NEXT MOLD PROJECT
Discuss a Mold for Your Product
Tell us what you want to make, what information you have, and when you plan to purchase. We will review your inquiry and follow up by email or your permitted contact channel.
