Custom mold
Define the tooling against your part geometry, intended use and agreed requirements.
CUSTOM ALUMINUM TOOLING

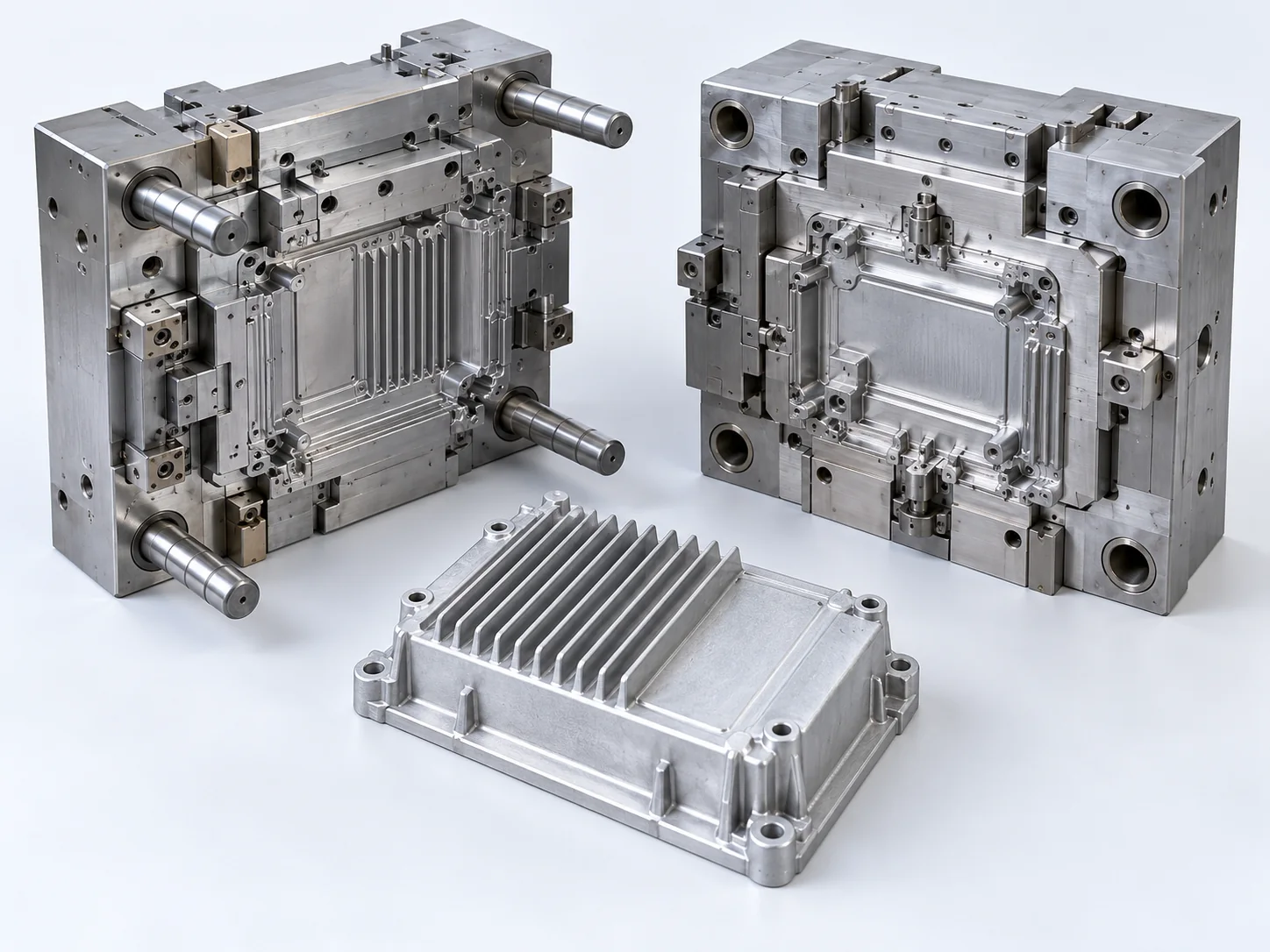

Custom Aluminum Die Casting Molds for Your Part
Bring clear 2D or 3D part drawings, or a physical sample, to discuss a mold made for your application. From one mold set, the project moves through design confirmation, manufacturing and trial samples before mold shipment.
One mold set welcome · No sign-in required
1 mold setCustom projects welcome
Drawings or sampleThe basis for a formal quote
Your approvalBefore manufacturing and shipment
MOLD-ONLY SERVICE
Tooling Built Around Your Component
We coordinate custom aluminum die casting mold projects through manufacturing partners. The deliverable is the mold; trial castings support your approval before handover.
3D design for approval
After payment, review the mold design and confirm it before manufacturing starts.
Trial samples & mold
Test the samples first. The finished mold is shipped after your approval.
START WITH YOUR PART
Begin with the Part, Not a Standard Mold
Clear 2D or 3D product drawings help us assess geometry and requirements. STEP/STP files are welcome. An assessable physical sample is another starting point for a formal quotation.
Photos alone can begin a preliminary discussion. We will discuss missing dimensions or details before a formal quote.
012D / 3D part drawings
Clear dimensions and the product features that matter.
02Physical sample
Discuss how to send an assessable sample.
The product reference supports quotation. The 3D mold design is prepared after payment.
APPLICATION EXAMPLES
Tooling for Housings, Covers and Other Components
Each component has its own geometry and mold requirements. These images show possible applications, not completed customer cases.

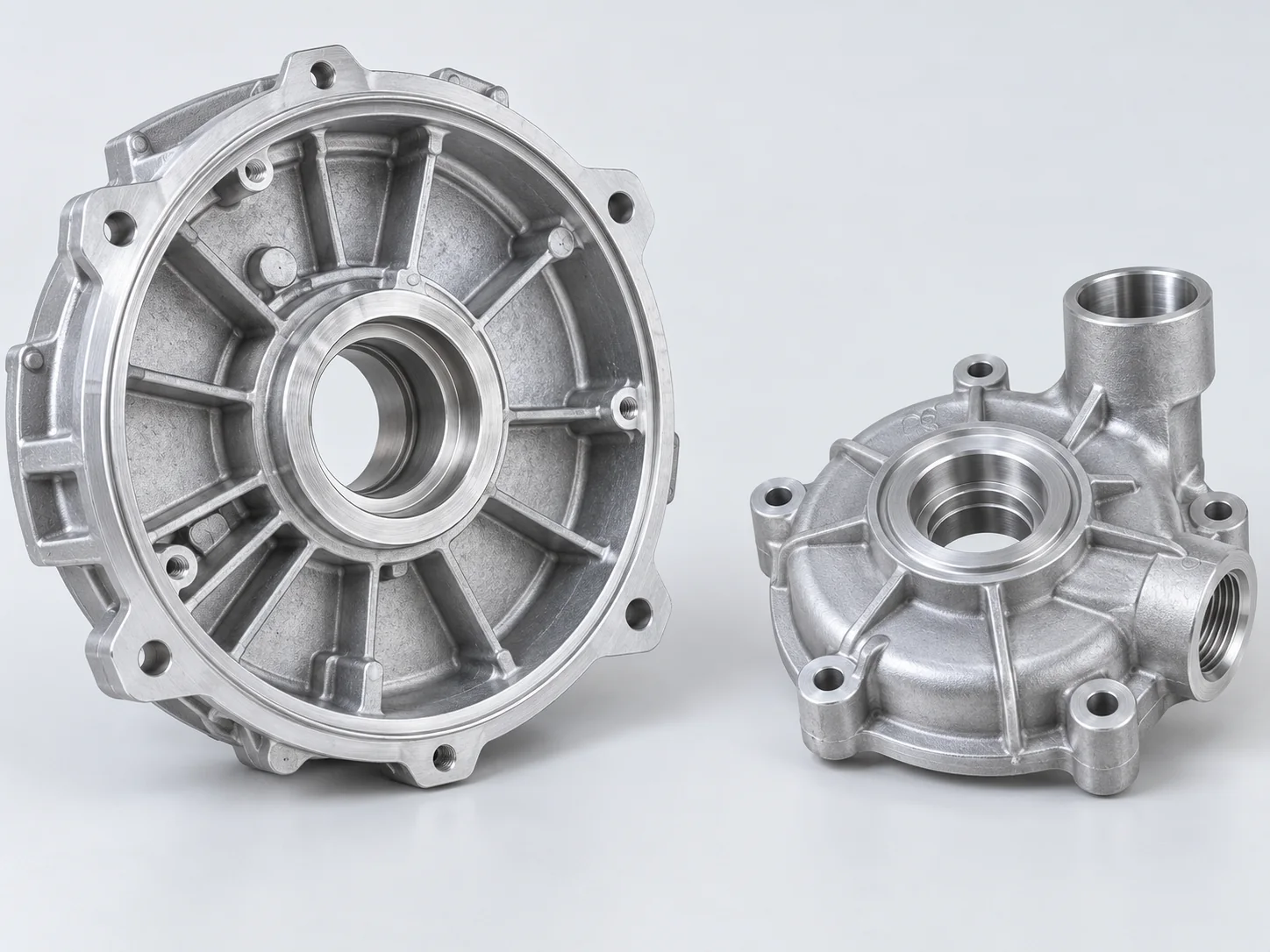

Motor & Transmission Applications
Describe housing interfaces, fit and component requirements.
Explore Application

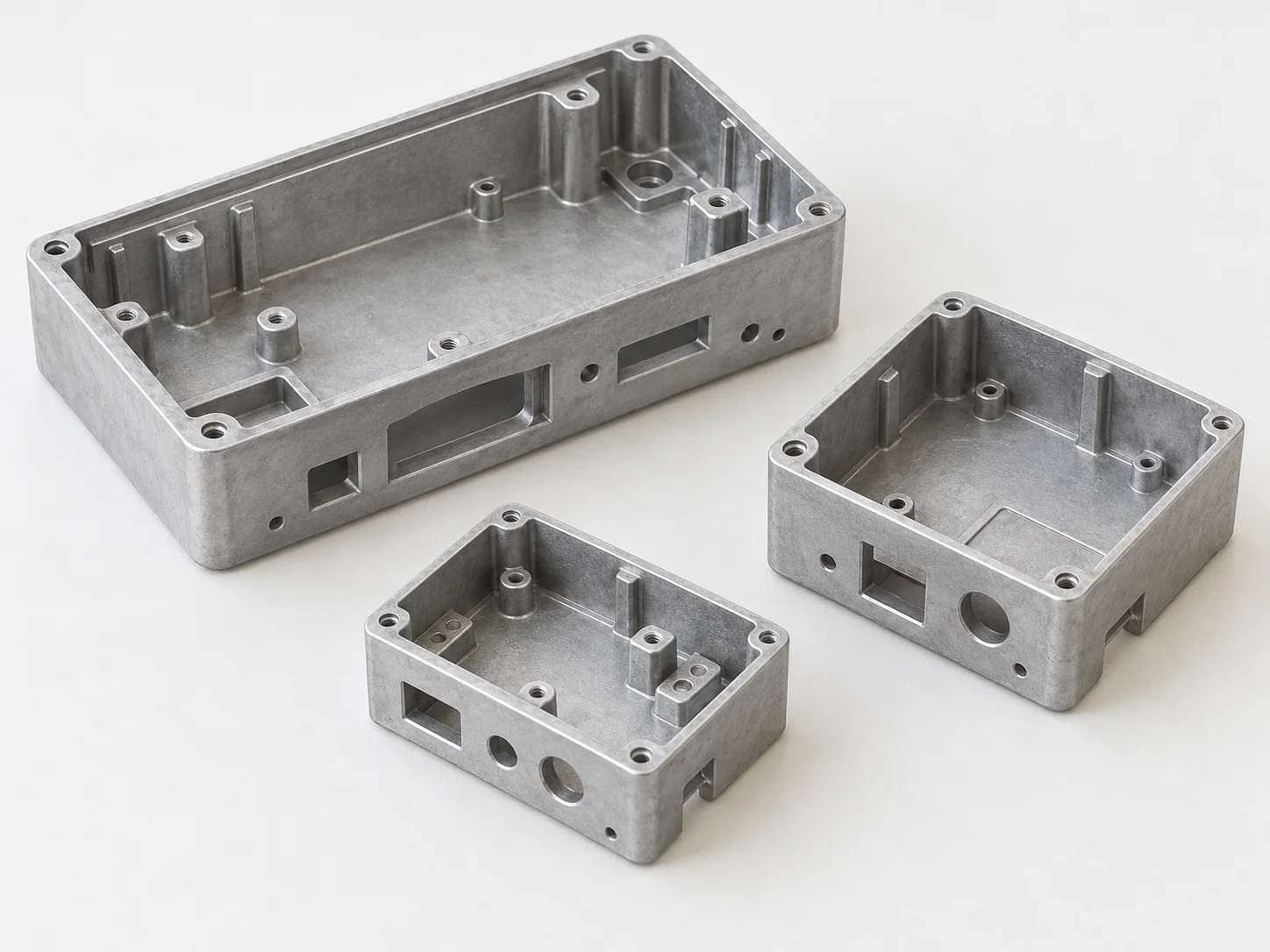

Other Industrial Applications
Find the closest application or describe your project.
Explore Application
DESIGN CONFIRMATION

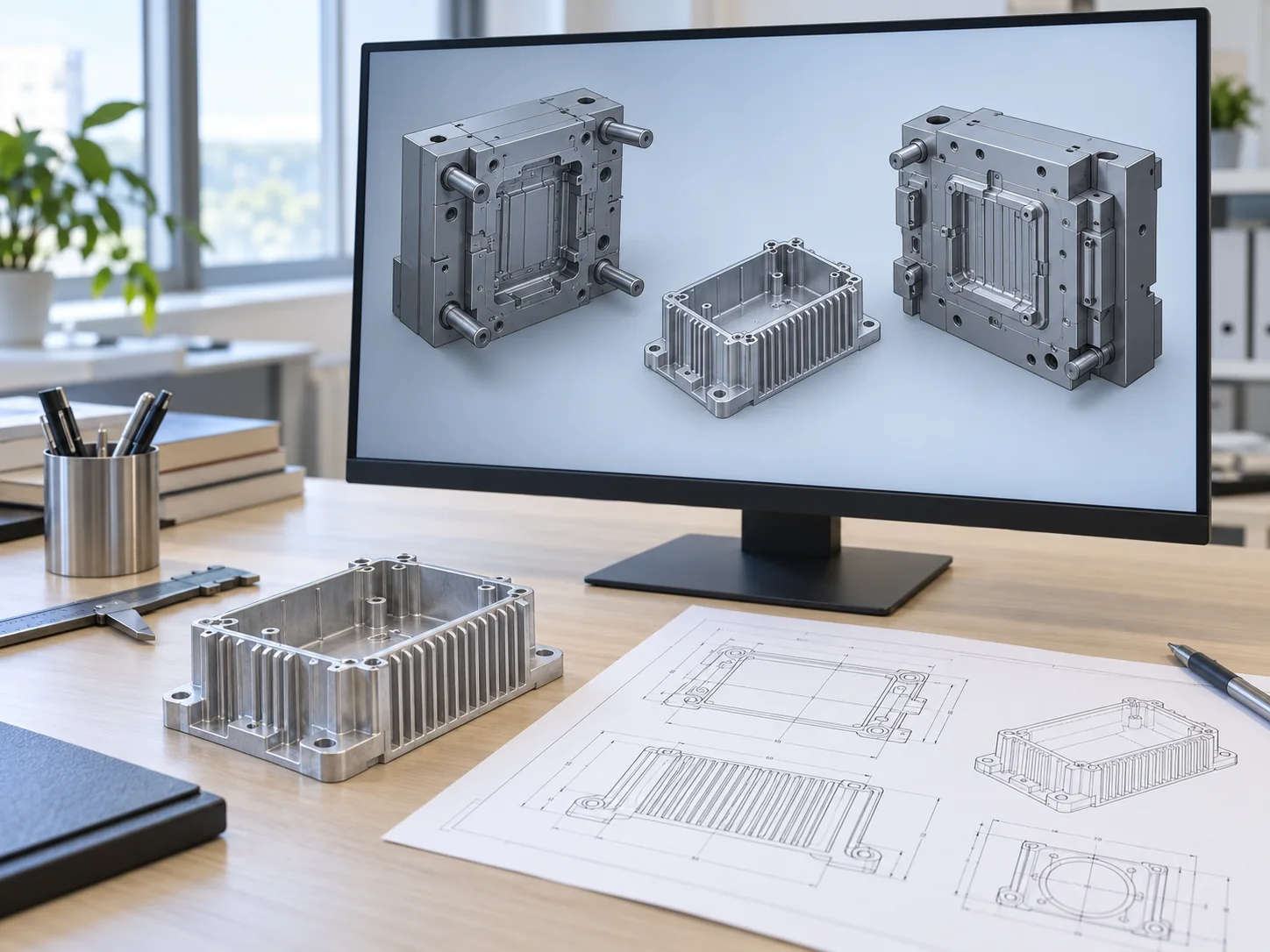

Confirm the 3D Mold Design Before Manufacturing
The mold design is prepared after payment under the agreed project arrangements. You receive the 3D mold design for confirmation before manufacturing starts. This is separate from the product drawing used to assess your quotation.
The product drawing used for a quote and the mold design prepared after payment are different documents. We confirm the agreed revision before production.
Understand Design ApprovalTRIAL & HANDOVER

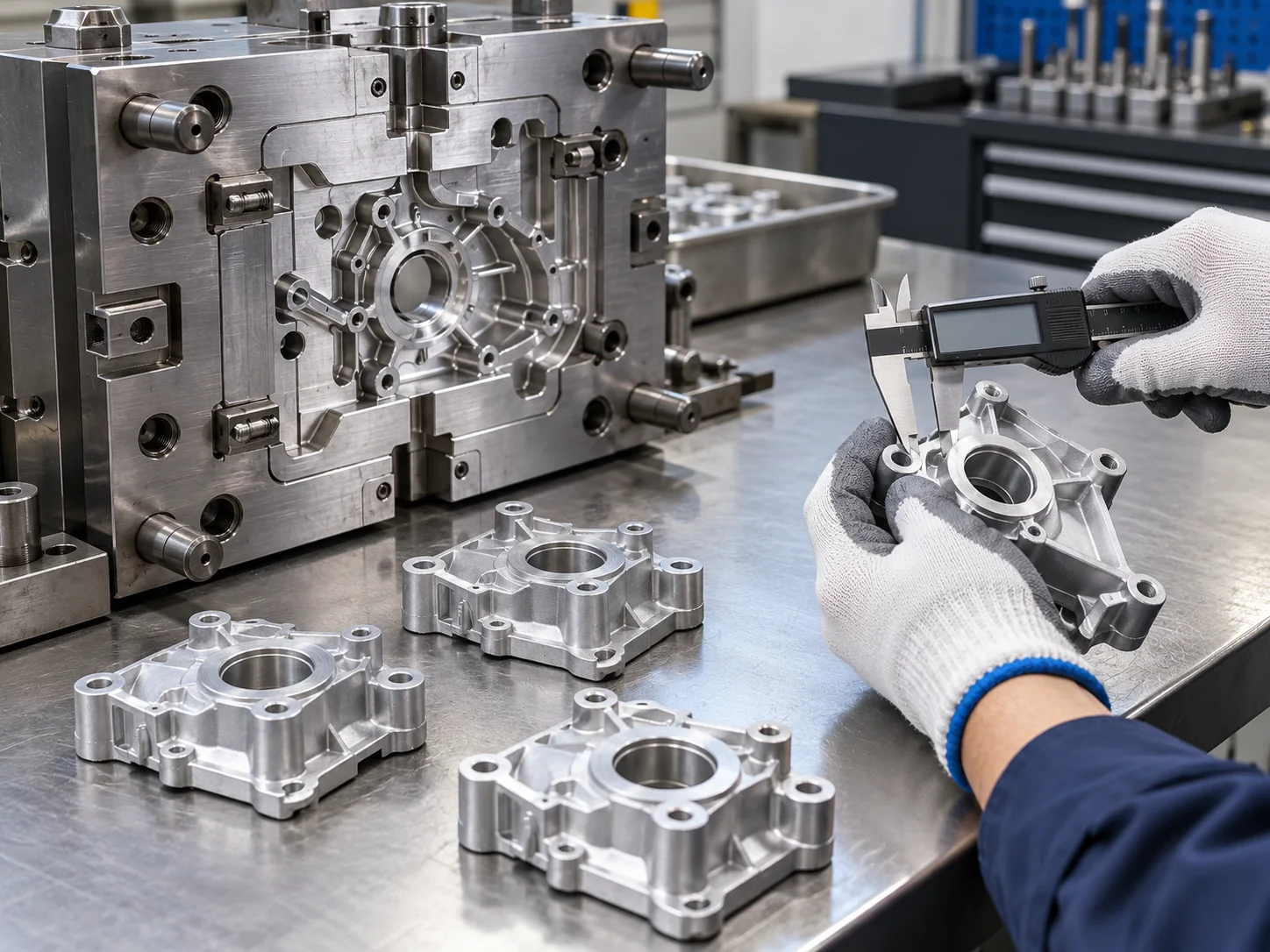

Evaluate Trial Samples Before the Mold Is Shipped
Once the mold has been made, it is trialed and samples are produced. The trial samples are sent to you for testing. You can assess the relevant fit, assembly or other agreed requirements and give feedback before mold delivery.
- Mold trialSamples are produced for review.
- Customer testingYou check the agreed fit and requirements.
- Mold shipmentAfter you approve the samples.
FROM REFERENCE TO HANDOVER
Four Clear Project Stages
We coordinate each stage with our manufacturing partners and keep your approvals in the process.
- 01
Part reference
Share clear product drawings or discuss an assessable physical sample.
- 02
Quote & payment
Agree the custom mold scope and project terms together.
- 03
Design approval
Review the 3D mold design before manufacturing begins.
- 04
Trial & handover
Test the trial samples; the mold ships after your approval.
Typical mold production is approximately 30–40 days from payment. Scope, approval timing, testing and shipping are confirmed for each project; this is not a guaranteed arrival date.
View the Full Mold ProcessBEFORE YOUR INQUIRY
Aluminum Die Casting Mold FAQs
Answers about the quotation basis, timing and what we deliver.
Yes, if the 2D part drawings clearly provide the information needed for assessment. We will discuss any missing details before a formal quotation.
Yes. An assessable physical sample can provide a quotation basis. Photos can start the conversation, but sample delivery needs to be arranged.
It is counted from payment. The precise schedule and the effects of design confirmation, trial, sample testing and logistics are agreed for the project.
Not as an ongoing production service. Our current scope is the mold, with trial samples for customer testing before shipment.
YOUR NEXT MOLD PROJECT
Request a Mold Quote for Your Part
Share your contact details, component and drawing or sample status. We will review the request and contact you about the next step.
