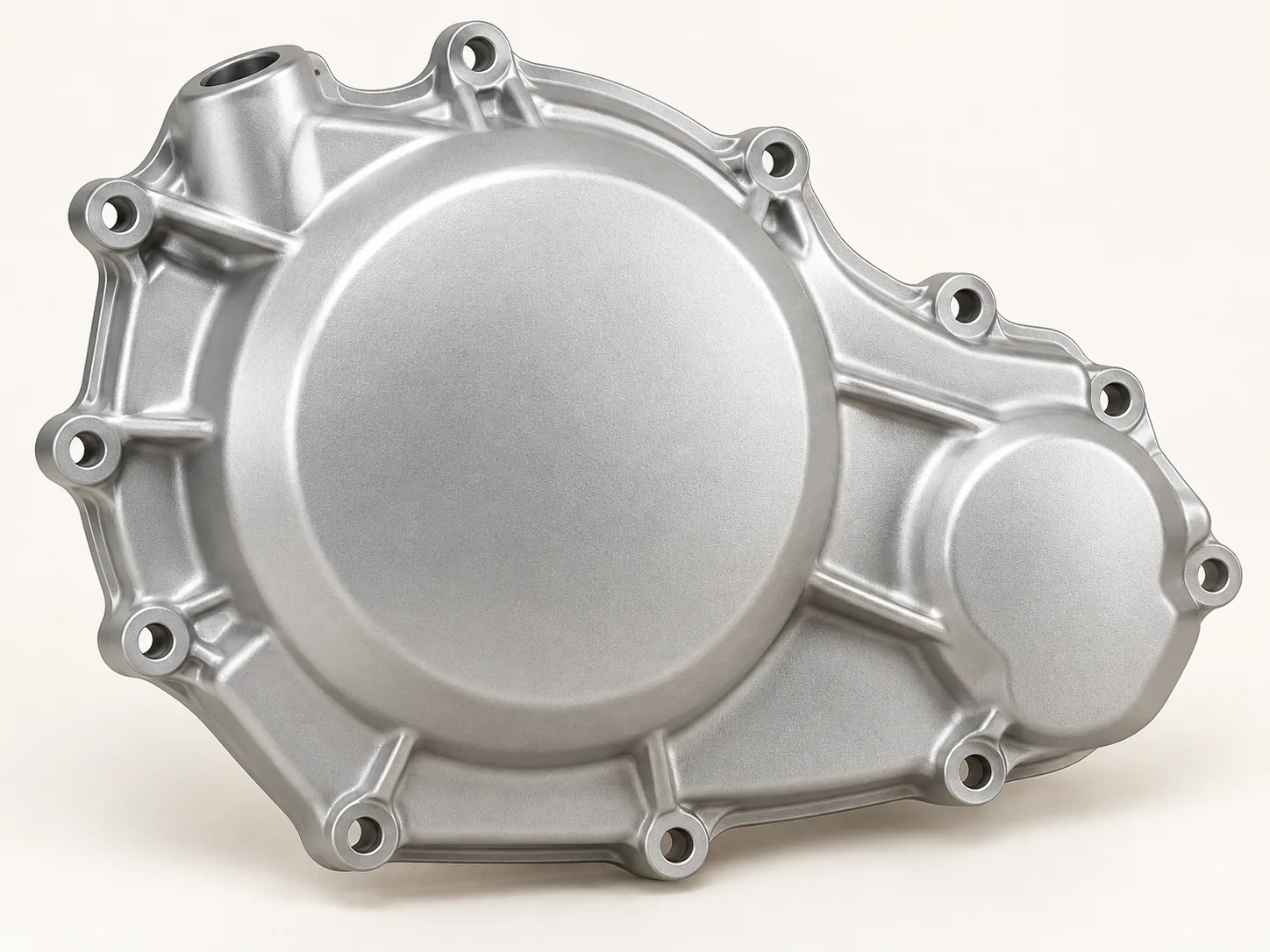

An outer cover with a mating edge, fastener positions and visible surfaces.
MOTORCYCLE & E-MOBILITY TOOLING
Custom Die Casting Molds for Motorcycle & E-Mobility Parts
Custom aluminum mold tooling for engine covers, motor housings and electric two-wheeler components. Share clear 2D or 3D part drawings, or an assessable sample, for a mold quote. One mold set is welcome.
Mold-only service · One mold set welcome
Custom mold toolingFor your actual component
Drawings or sampleThe basis for a formal quote
Trial before shipmentYou test samples before mold handover
NINE COMPONENT EXAMPLES
Explore Motorcycle & Electric Two-Wheeler Components
Nine distinct component examples show where a custom aluminum die casting mold may fit. The images are illustrations, not delivered customer projects. We assess your actual part from drawings or a sample.
Fuel Motorcycle Components
Covers and housings around the engine and drivetrain.

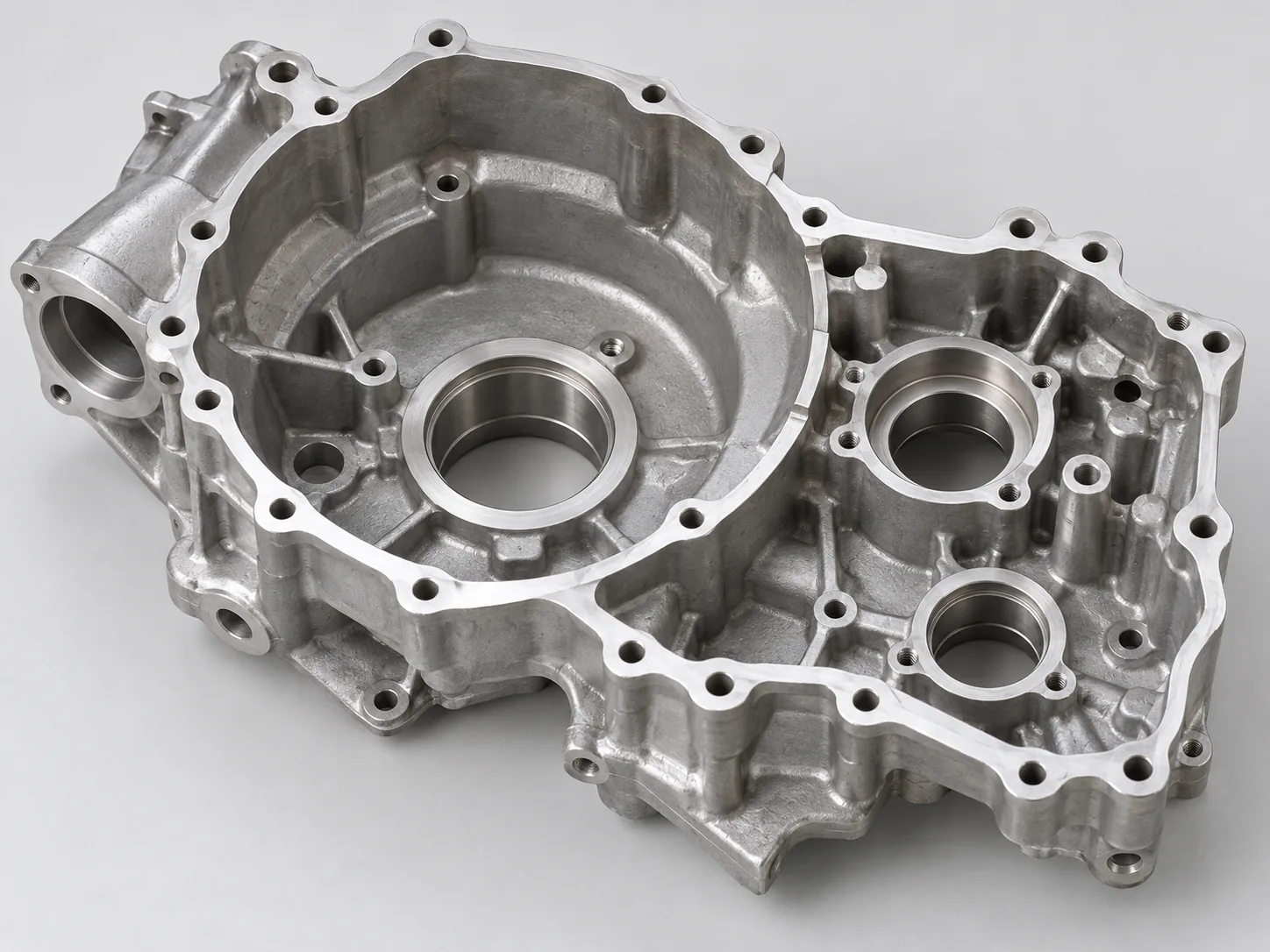

Crankcase Half
A deeper housing with bearing openings, ribs and multiple assembly faces.
Transmission Cover

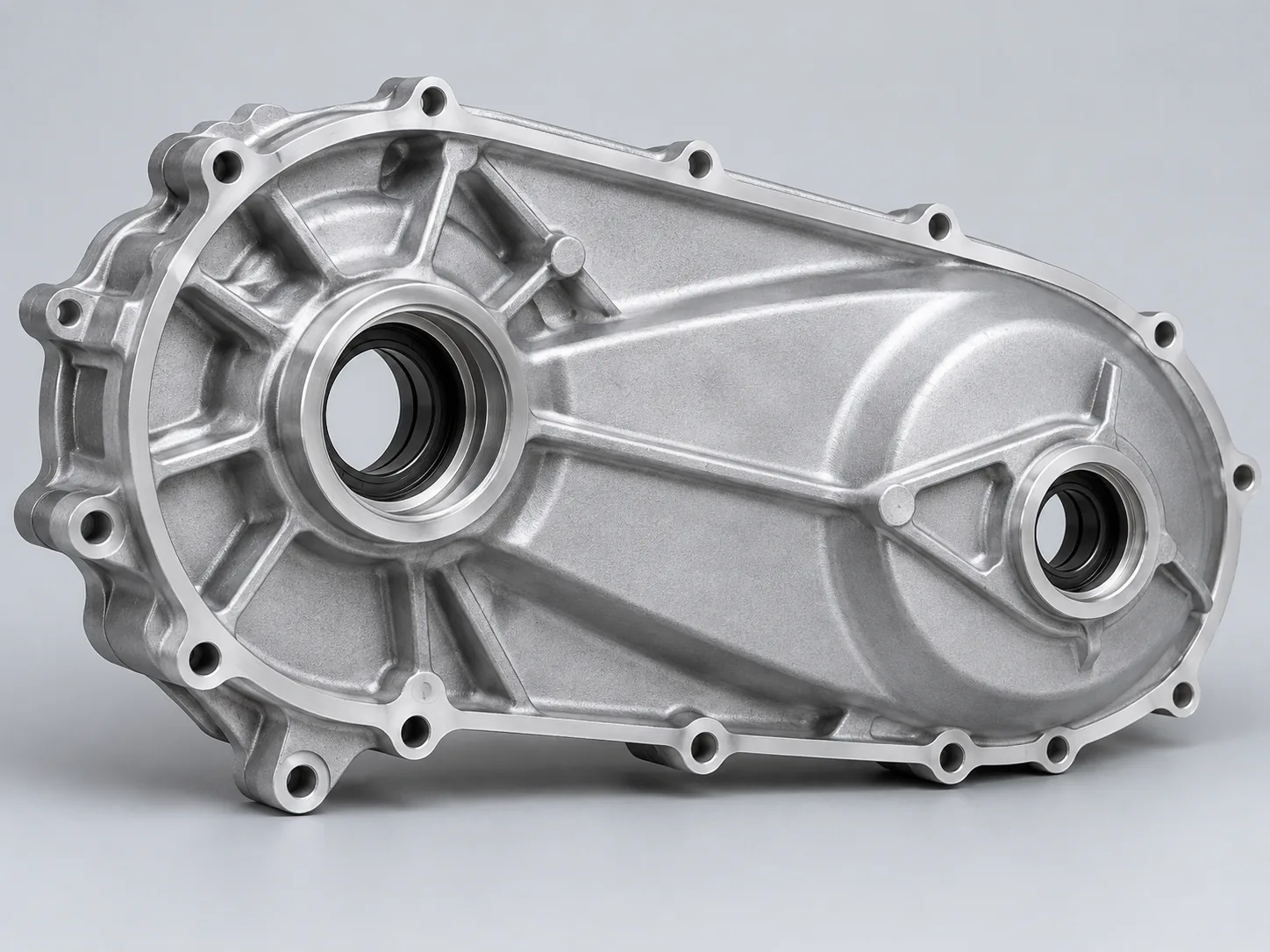

A shaped gearbox cover with shaft openings and sealing interfaces.
Electric Drive Components
Different drive layouts call for different component references.
Hub Motor End Cover

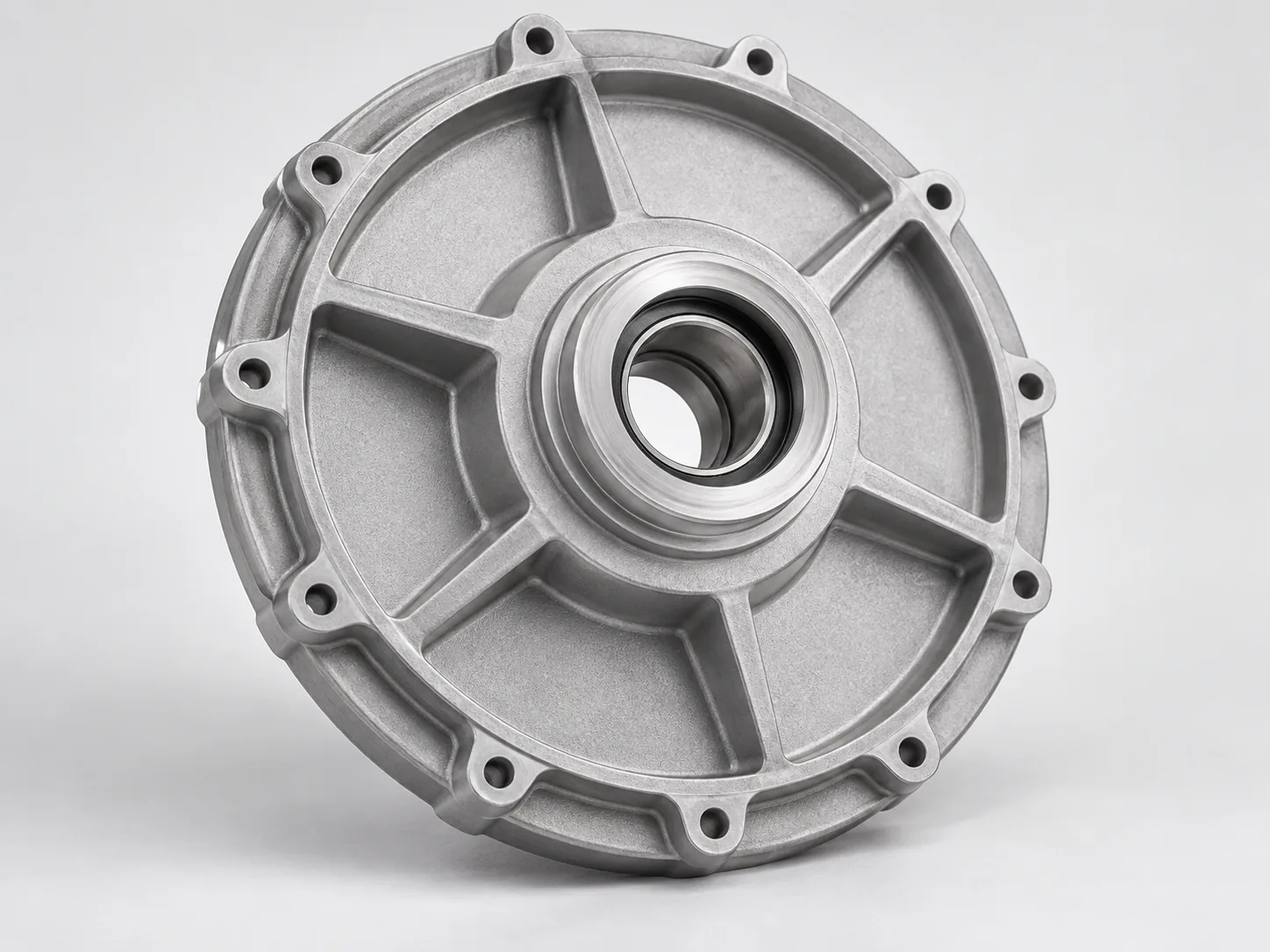

A circular end cover with central opening and perimeter attachment features.
Mid-Drive Motor Housing

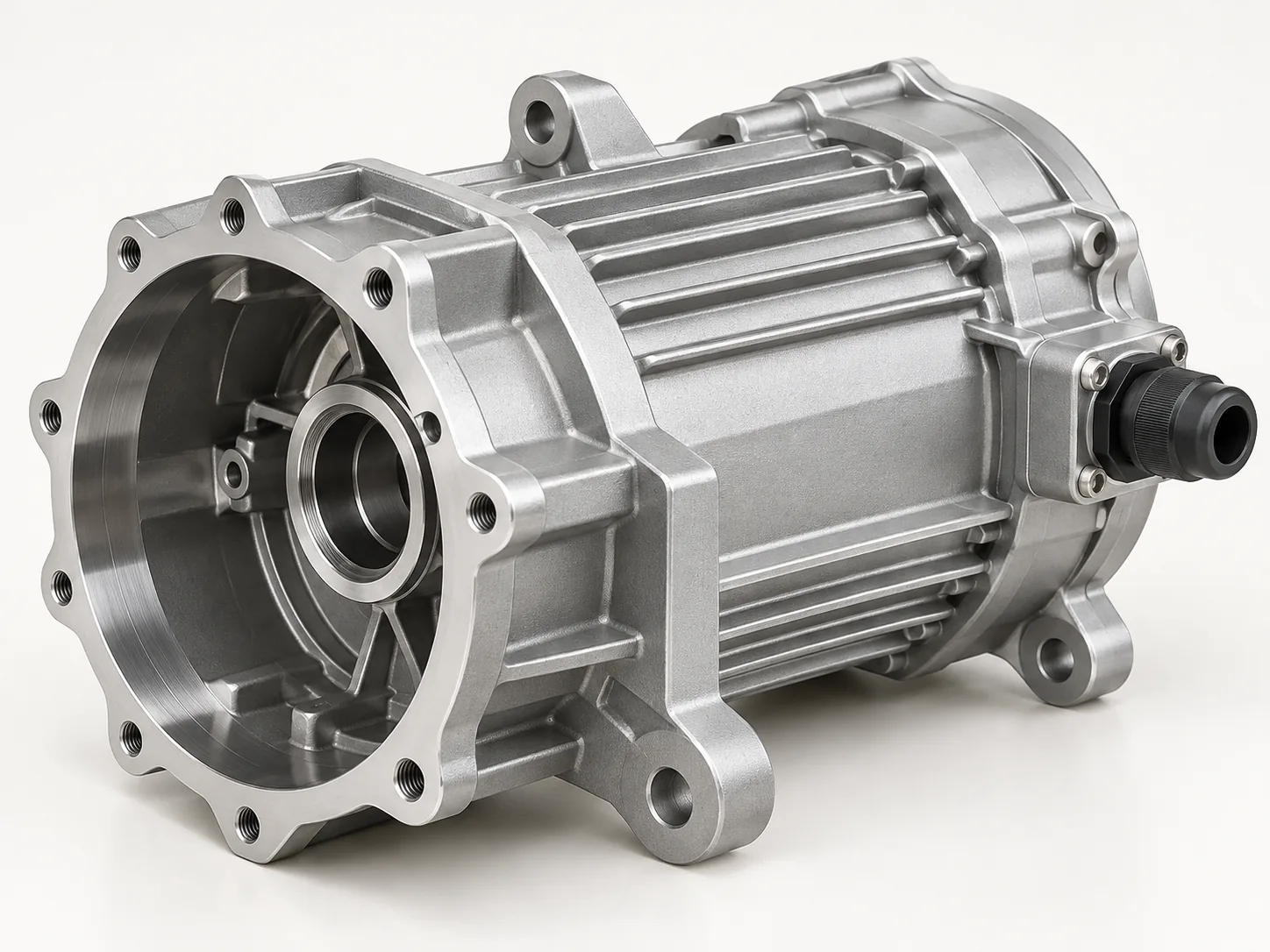

A compact housing with ribbing, mounting feet and motor interfaces.
Reduction Gearbox Housing

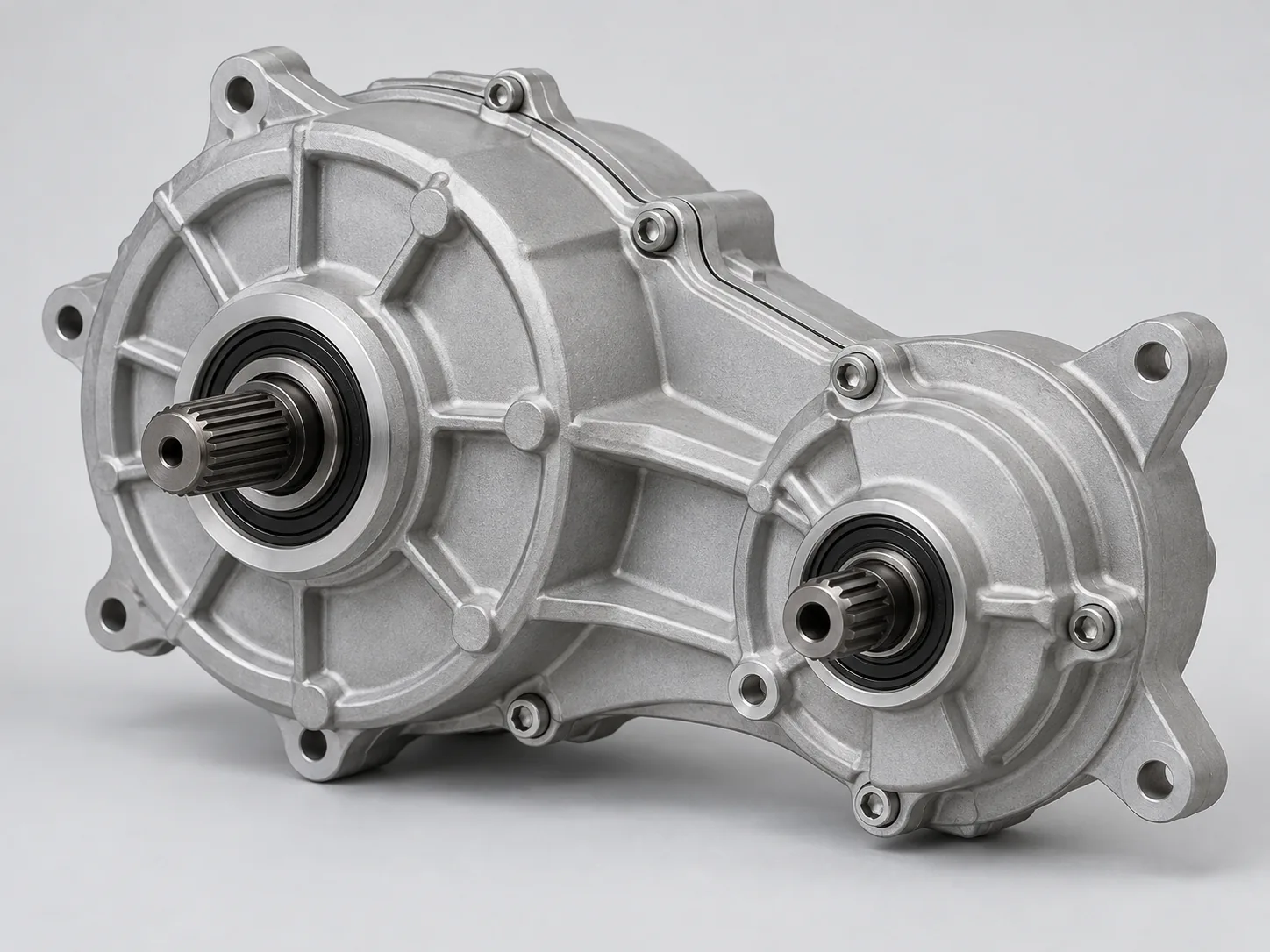

A reducer body with separate cavities, shaft openings and mating edges.
Control & Mounting Parts
Review each casting as an individual mold project.
Controller Enclosure

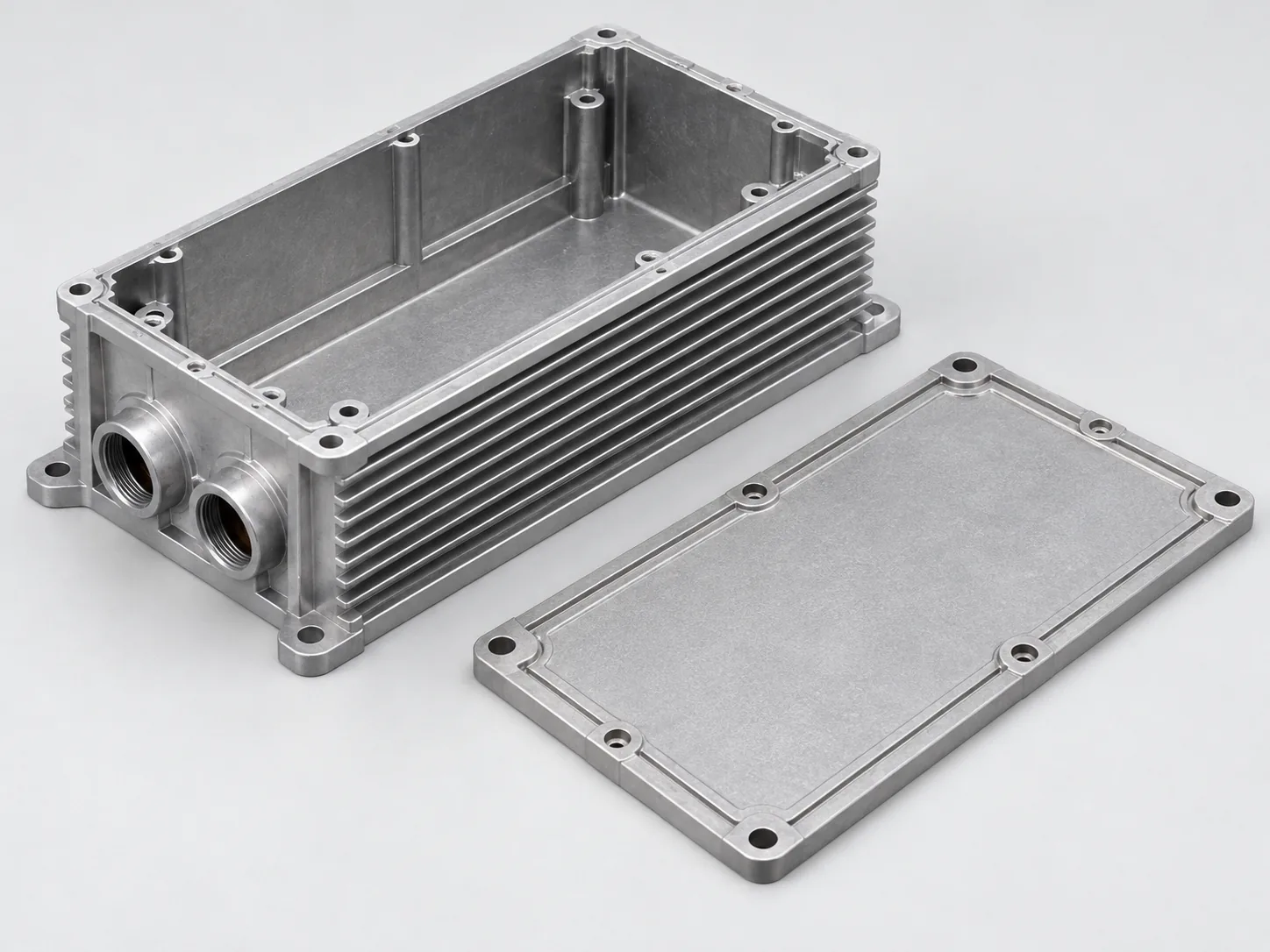

An electronics housing with attachment points and cover interface.
Battery Pack End Caps
End components with mating lips and fastener positions.

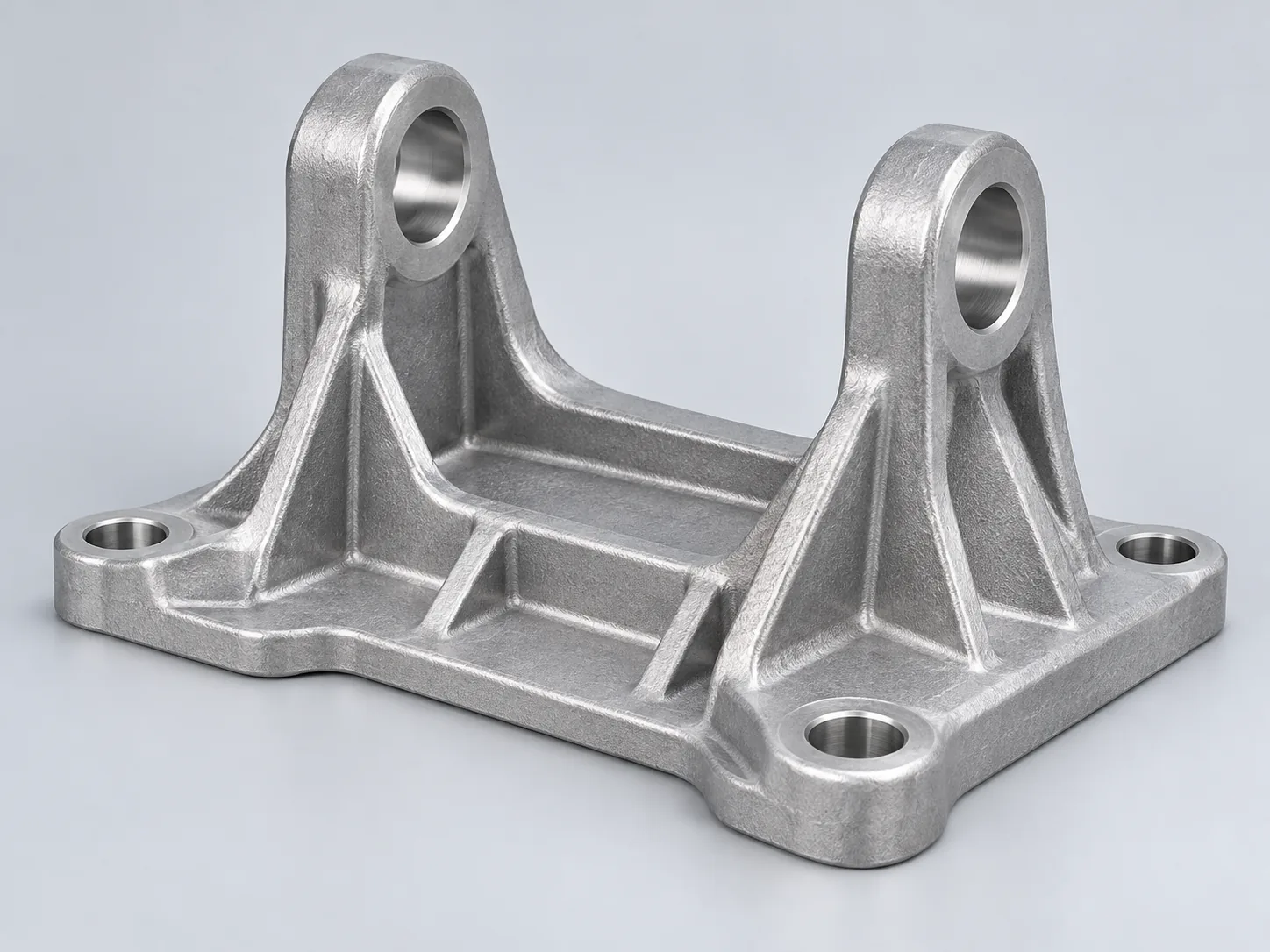

Motor Mount Bracket
A structural mounting concept with bolt positions and open geometry.
Generated component illustrations, not completed customer cases or a catalog of finished parts. Tooling suitability depends on your drawings or assessable sample.
ASSEMBLY CONTEXT
Show the Interfaces That Need to Match
Explain where the part meets the engine, motor, frame or surrounding covers. Identify mounting positions, shaft openings, mating faces and any areas that will be machined later. Include appearance expectations for visible surfaces, especially where lettering, a texture or a coating is planned. These are inputs for a project discussion, rather than automatic promises about the finished part.
- 01
Mounting points
Locate fasteners and frame or bracket interfaces.
- 02
Shaft openings
Identify openings and any later machining.
- 03
Mating faces
Show the surfaces that meet adjacent components.
- 04
Visible surfaces
Mark the finish, texture or coating expectations.
- 05
Current revision
Confirm the intended geometry and any changes.
For a sample-led project, tell us whether wear or damage changes the intended shape. Any equipment interface or acceptance requirement must be discussed for the actual project.
TWO WAYS TO START
Bring a Drawing or an Assessable Sample
Both routes lead to the same project review. Drawings give the clearest basis for a formal mold quote.
Drawing-led new mold
Upload a STEP/STP 3D part model or clear dimensioned 2D drawings. Mark the revision, mating features, key surfaces and planned machining.
Upload Product DrawingsSample-led copy or revision
Describe the part you can send, its condition and any changes. A worn or damaged sample may not show the original geometry; we will discuss missing details.
Discuss a Physical SamplePhotos alone can begin a preliminary conversation. A formal quotation needs clear part drawings or an assessable physical sample. We supply molds, not ongoing die cast part production.
FROM REFERENCE TO HANDOVER
Approve the Design, Then Test Trial Samples
Customer approval is built into the mold project before manufacturing and before final shipment.
- 01
Part reference
Share drawings or discuss an assessable sample.
- 02
Quote & payment
Agree the mold scope and project terms.
- 03
Design approval
Confirm the 3D mold design before manufacturing.
- 04
Mold trial
Test the mailed trial samples against agreed requirements.
- 05
Mold shipment
The finished mold ships after sample approval.
Typical mold production is around 30–40 days from payment, subject to scope and approval timing. This is not a guaranteed arrival date.
See the Full Mold ProcessBEFORE YOUR INQUIRY
Project Questions
A physical sample can be used for quotation review. Tell us about wear, damage and requested changes so that the intended geometry can be discussed.
No. These are examples of applications for custom molds. We are not currently accepting die cast part mass production orders.
No. The discussion concerns a custom mold for your component. Vehicle design, system approval and road-use requirements are outside the website service offer.
Yes. We accept a custom project starting from one mold set. We review the part drawing or assessable sample before quoting.
Clear 3D product files such as STEP or STP are useful, along with dimensioned 2D drawings where available. Show the current revision, mating features and planned machining. An assessable physical sample is another starting point.
We cannot assume that from the product names. Share drawings of both parts so the geometry and tooling approach can be assessed for your project.
After payment, we prepare the 3D mold design for your approval before manufacturing. We trial the mold and mail samples for your testing, then ship the finished mold after you approve the samples. Typical mold production is around 30–40 days from payment, subject to the agreed project scope and approvals.
YOUR NEXT MOLD PROJECT
Discuss a Mold for Your Product
Tell us what you want to make, what information you have, and when you plan to purchase. We will review your inquiry and follow up by email or your permitted contact channel.
