Drill gearbox housing
Identify the gear cavity, bearing seat and fastening pattern.
POWER TOOL & APPLIANCE TOOLING

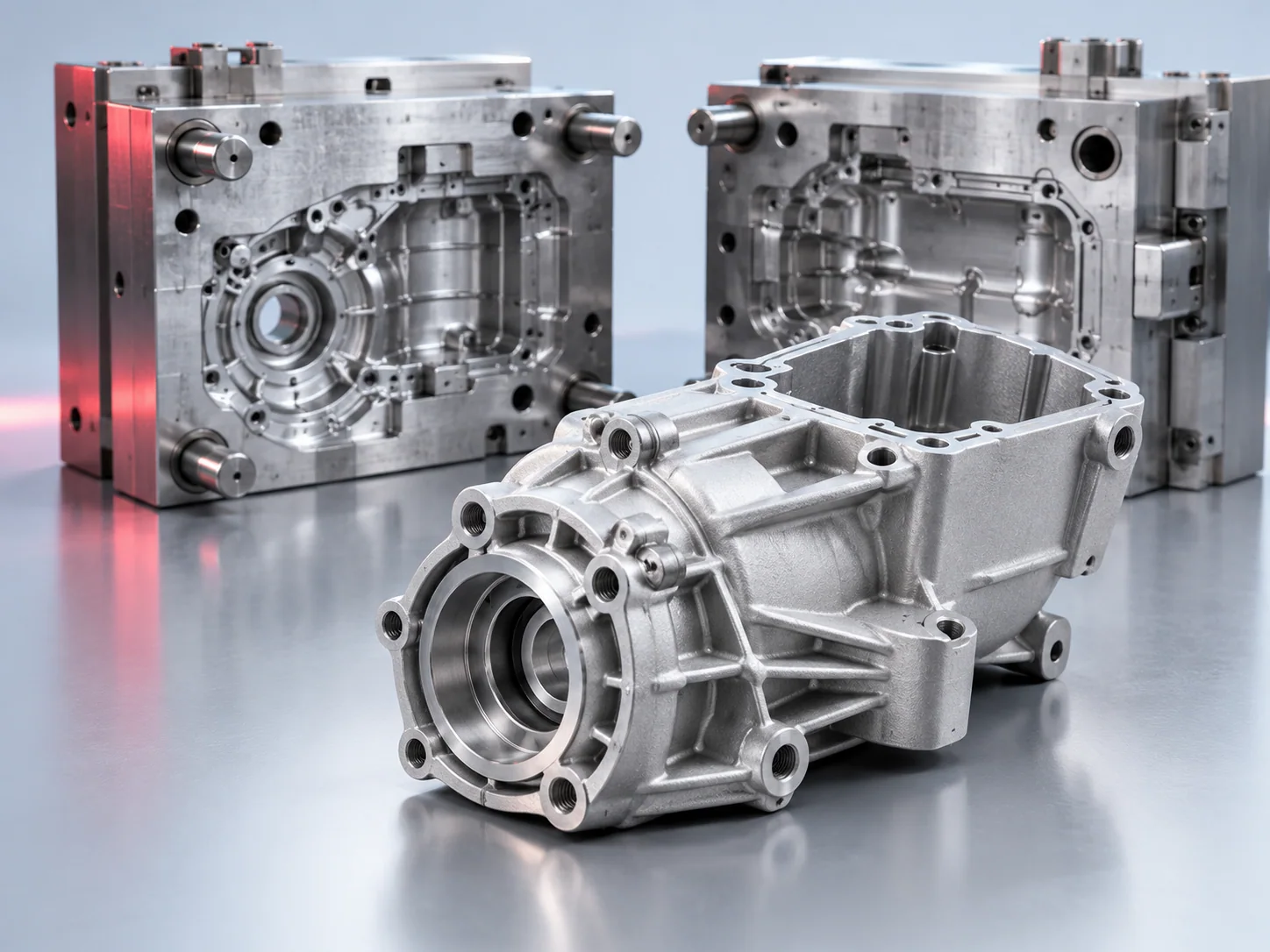

Aluminum Die Casting Molds for Power Tool & Appliance Parts
Need a mold for a tool gearbox housing, cleaning equipment part or appliance metal support? Start with your component drawing or an assessable sample. We make custom molds from one set; each part is reviewed for fit and casting feasibility.
Mold-only service · One mold set welcome
Custom mold toolingFor one defined aluminum component
Drawings or sampleNeeded for a formal quotation
Two approval pointsMold design, then trial samples
COMPONENT APPLICATIONS
Explore Power Tool & Appliance Component Types
These nine illustrations show different aluminum parts that may be discussed for custom mold tooling. Your part drawing or sample determines the actual mold scope.

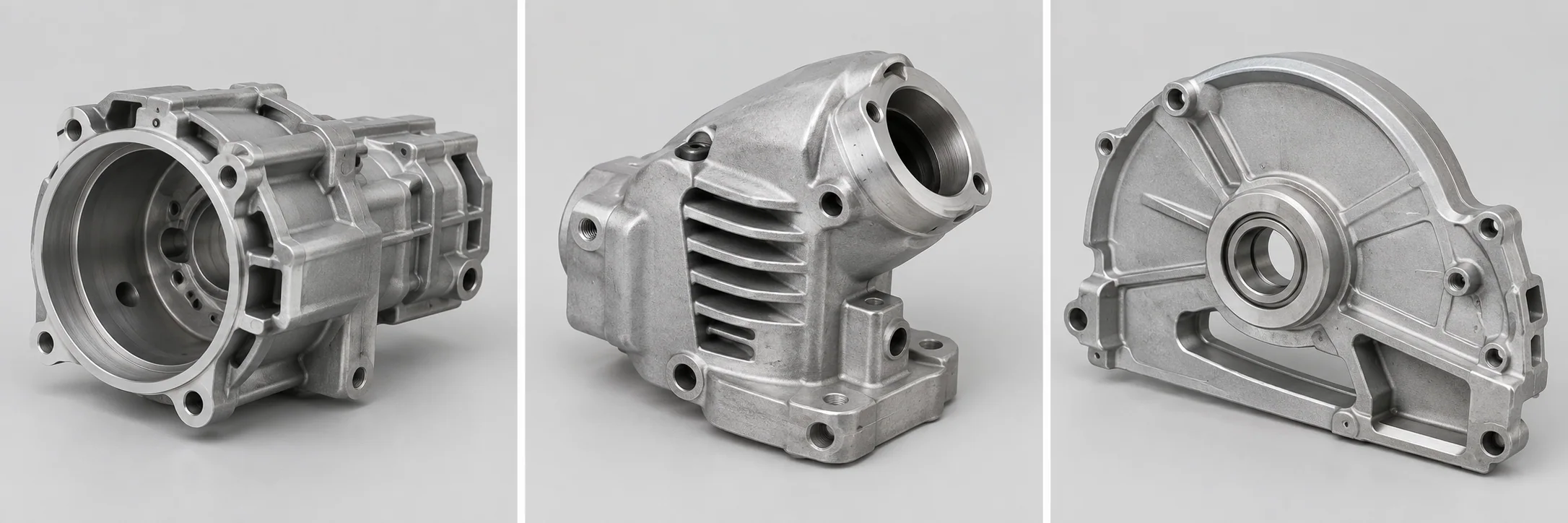

Power Tool Drive Components
Gear and bearing housings for individual tool assemblies.
Angle grinder gear head
Show shaft position, joining faces and planned machining.
Saw drive end cover
Mark the bearing interface and cover attachment points.

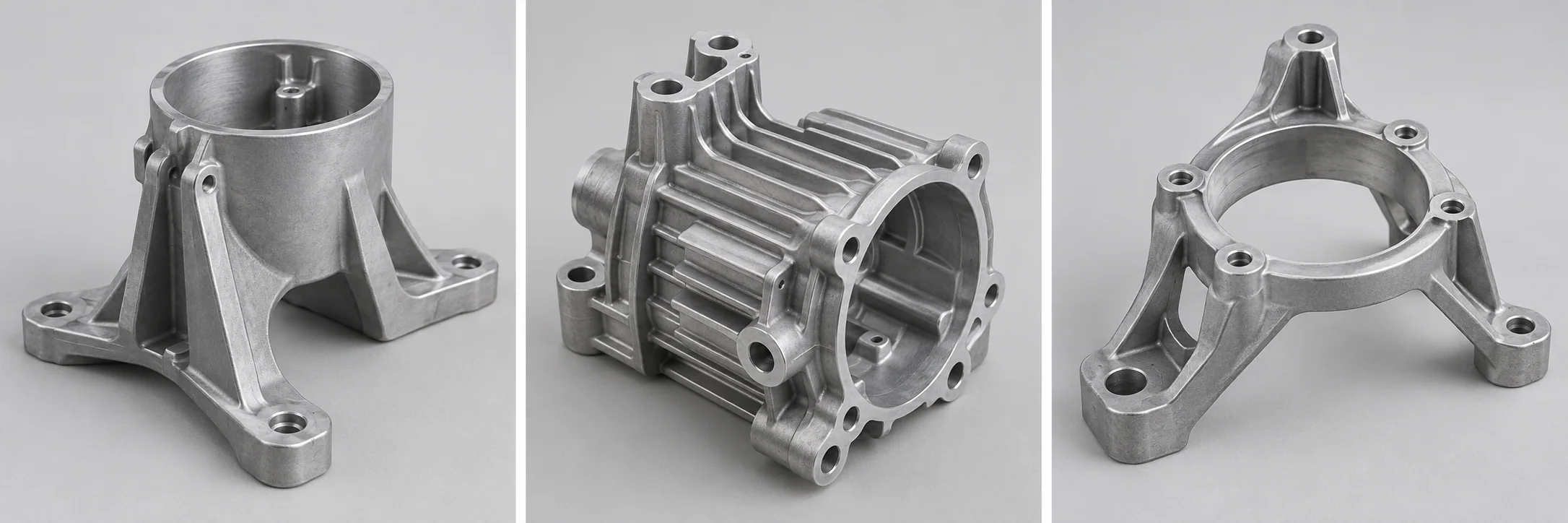

Cleaning Equipment Structures
Motor supports and drive housings for cleaning equipment.
Scrubber motor mount
Define the motor seat and equipment mounting points.
Washer drive housing
Show the internal space and connection to other parts.
Vacuum motor support
Identify ring geometry, ribs and fastener locations.

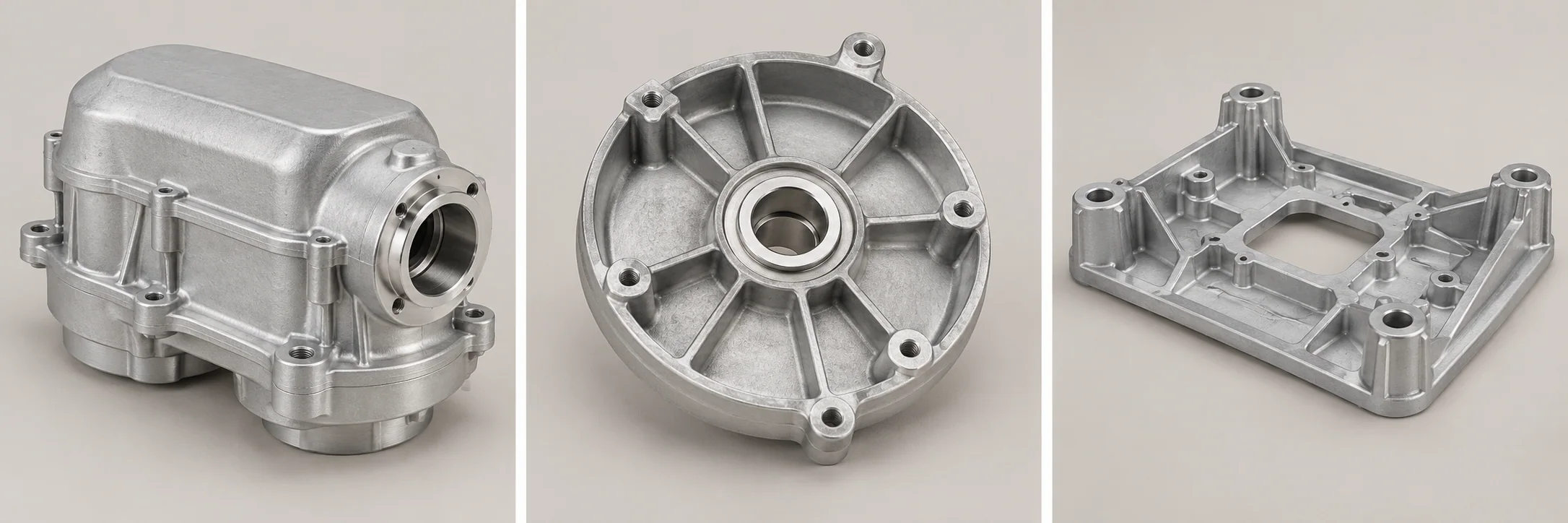

Home Appliance Metal Parts
Internal drive parts and structural supports for appliance projects.
Mixer gearcase
Show shaft opening, cover joint and visible surfaces.
Appliance motor end cover
Mark the bearing seat and motor mounting pattern.
Appliance mounting base
Define mating faces, fixing holes and overall envelope.
Generated application illustrations, not delivered customer cases. The suitability of your component for aluminum die casting is reviewed from its actual drawing or sample.
PART FIRST, PRODUCT SECOND
Separate Visible Parts from Internal Components
A tool or appliance photo helps explain use. A mold is planned around the individual aluminum part and its interfaces.
Drive and support parts
Identify bearing seats, gear clearances, fasteners and mating faces on the part drawing.
External metal parts
Mark surfaces that remain visible and any planned machining, coating, lettering or texture.
We quote a custom mold for the defined part, not an assembled tool, appliance or ongoing casting production.
DRAWING REVIEW
Explain Assembly, Appearance and Finishing
Small interface differences can change the mold scope. Show how the casting meets nearby parts and which surfaces need separate finishing.
See the Drawing Guide- 01
Fit and fastening
Bearing seats, bolt patterns, mating faces and moving-part clearances.
- 02
Machining and finish
Call out bores, threads, coatings or appearance areas in the current documents.
- 03
Part revision
Mark the version to quote and list planned changes separately.
- 04
Use conditions
Share relevant heat, vibration or operating requirements for project review.
Whole-product safety, noise, durability and certification depend on separate product-specific validation; a mold illustration does not establish those results.
PREPARE YOUR INQUIRY
Choose a Stable Product Reference
Start with a STEP/STP model or clear dimensioned 2D drawing of the current part. An assessable physical sample is another route. Tell us the product use, key mating features, desired appearance and which revision you want quoted.
Upload Product DrawingsNo drawings yet? The form also offers a preliminary discussion route.
01 / PARTGeometry and current revision
02 / ASSEMBLYFit, fastening and appearance
03 / PROJECTMold use, timing and contact details
FROM DRAWING TO MOLD HANDOVER
Review the Design Before Manufacturing
We ask for your confirmation before mold manufacturing and again before final mold shipment.
- 01
Part reference
Upload clear 2D/3D part drawings or tell us about an assessable sample.
- 02
Quote & payment
Agree the individual part revision, mold scope and project terms.
- 03
Design approval
Review our 3D mold design before mold manufacturing starts.
- 04
Mold trial
Test the trial samples sent to you against agreed requirements.
- 05
Mold shipment
We send the finished mold after you approve the samples.
Typical mold production is about 30–40 days from payment, subject to project scope and approval timing. This is not a guaranteed arrival date.
See the Full Mold ProcessBEFORE YOUR INQUIRY
Project Questions
Yes. We can discuss a single custom mold set. Please send a clear 2D or 3D part drawing, or describe an assessable physical sample.
A physical component sample can be reviewed. Explain its finish, condition and any changes needed for your intended product.
A complete product photo helps explain use, but a formal mold quotation needs clear drawings of the individual part or an assessable physical sample.
No. The current offer is a custom aluminum die casting mold. Finished products, electrical assembly and casting mass production are outside the scope.
Tell us which appearance and fit requirements matter. Trial samples are sent for your testing against the requirements agreed for the project.
YOUR NEXT MOLD PROJECT
Discuss a Mold for Your Product
Tell us what you want to make, what information you have, and when you plan to purchase. We will review your inquiry and follow up by email or your permitted contact channel.
