CUSTOM MOLD TOOLING

Aluminum Die Casting Mold Tooling & Applications

Explore custom mold tooling for your component. Send clear 2D or 3D part drawings, or tell us about a physical sample, to start a project review.

Upload Drawings for a Mold QuoteExplore the Mold Service

One mold set welcome · No sign-in required

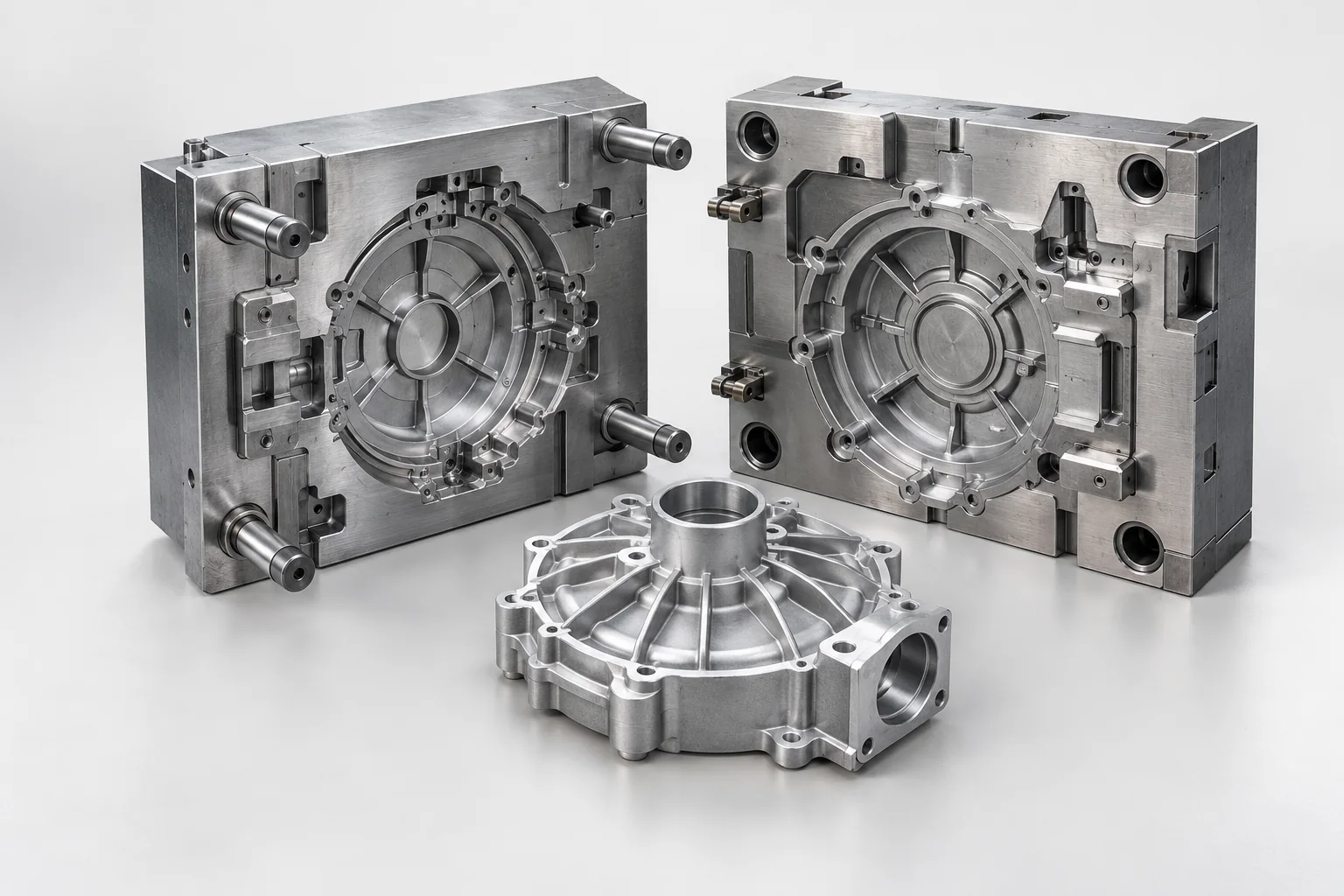

Illustrative open aluminum die casting mold and an electric motor end cover
Illustrative example · Not a delivered project
1 mold setCustom tooling projects welcome
Drawings or sampleThe reference for a formal quote
Your approvalBefore manufacturing and mold shipment

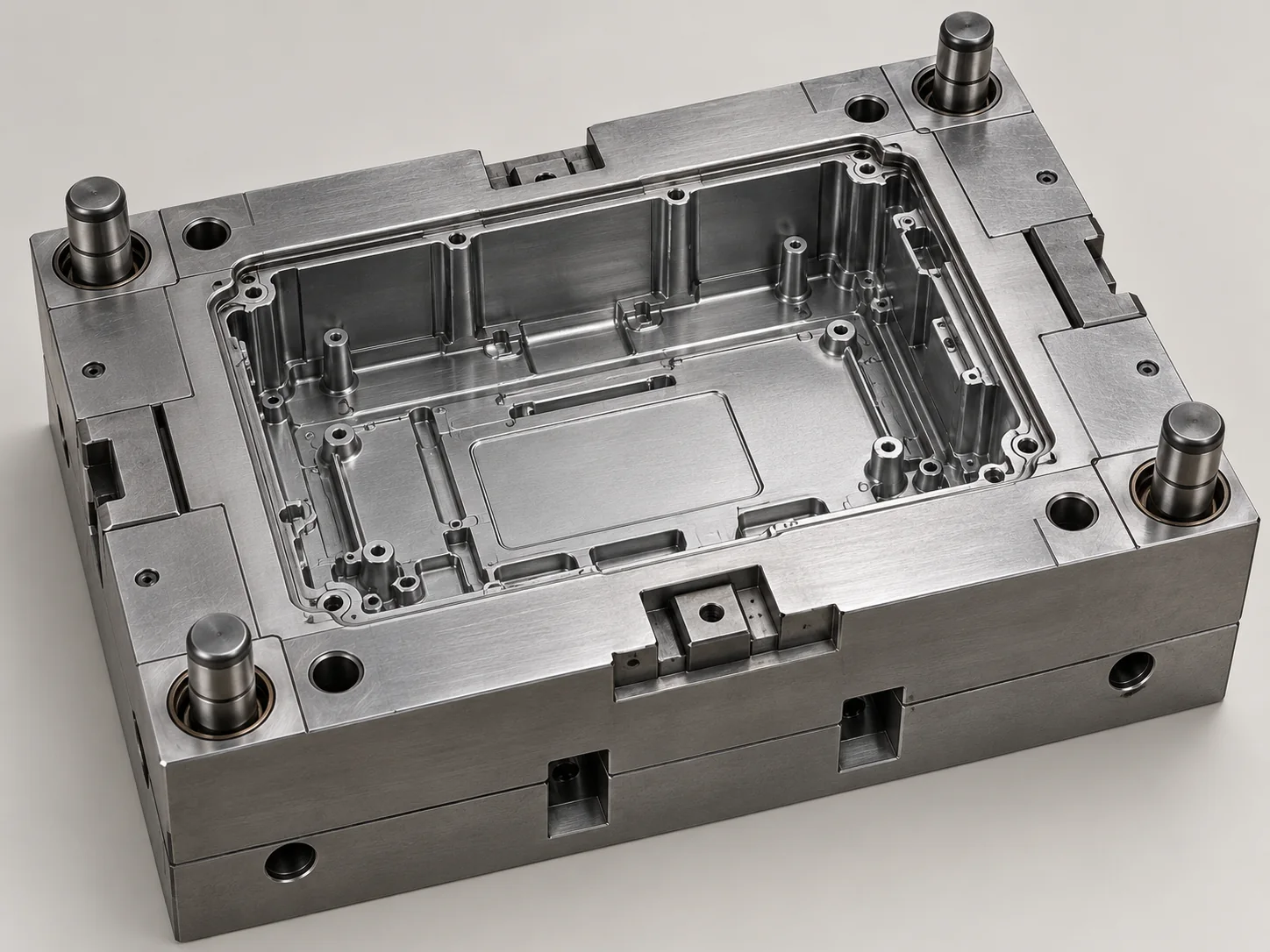

Illustrative close-up of a machined die casting mold cavity
Illustrative mold image · Not a delivered project

OUR MAIN TOOLING SERVICE

Custom Aluminum Die Casting Molds

We coordinate custom aluminum die casting mold projects around your component reference and agreed requirements.

  • One mold set can be considered
  • 3D mold design is sent for approval after payment
  • Trial samples are sent for your testing
Explore Aluminum Die Casting Molds

APPLICATION EXAMPLES

Explore Mold Applications

Different components call for different mold discussions. These images illustrate possible applications, not completed customer projects.

View All Applications

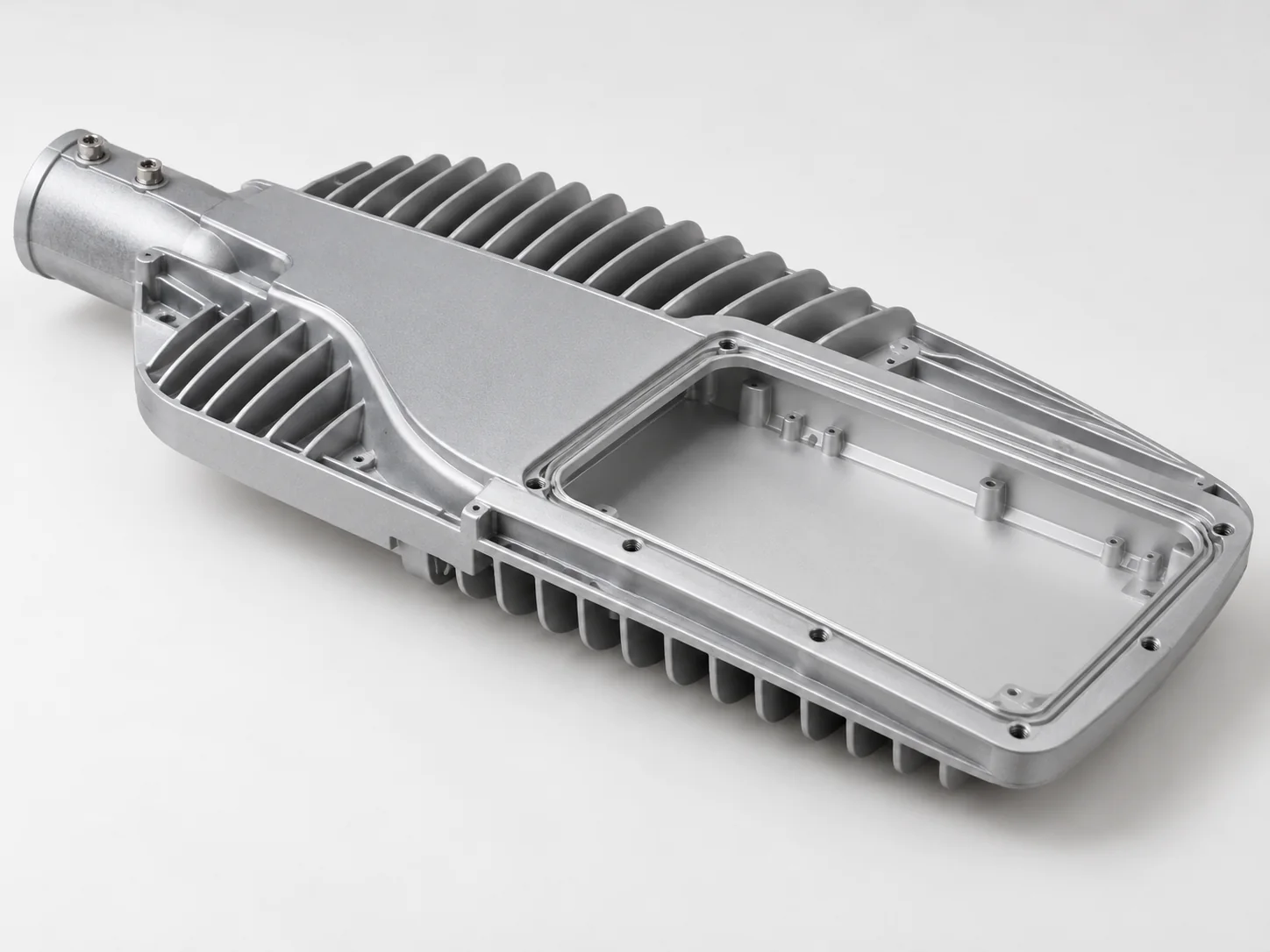

Illustrative lighting housings aluminum component
Illustrative application example

Lighting Housings

Discuss a mold for an LED housing, heat-sink body or related lighting component.

Explore Application

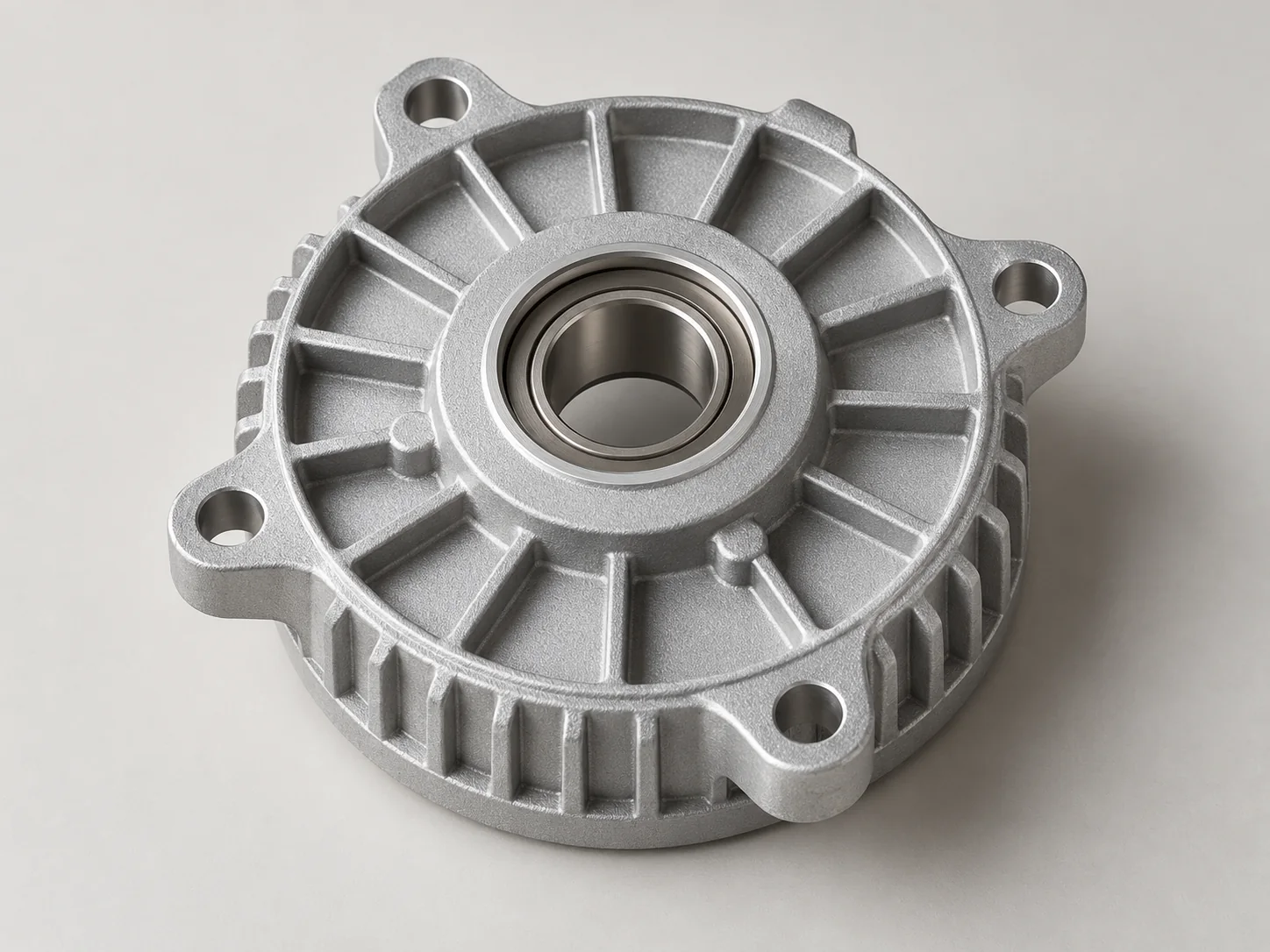

Illustrative motor & pump covers aluminum component
Illustrative application example

Motor & Pump Covers

Share the assembly, mounting features and reference for an end cover or housing.

Explore Application

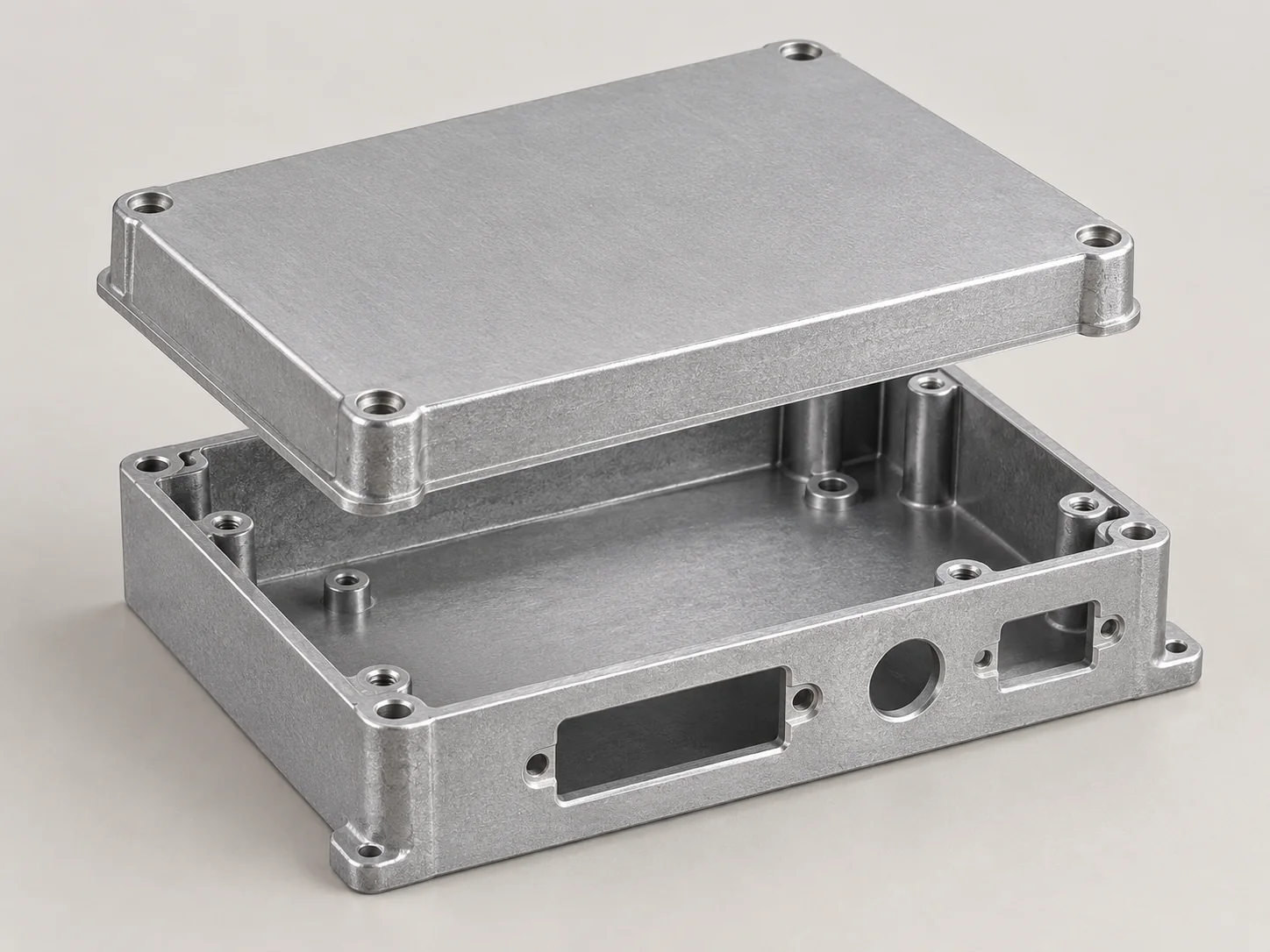

Illustrative electronics enclosures aluminum component
Illustrative application example

Electronics Enclosures

Describe the internal space, connector openings and mounting points.

Explore Application

FROM REFERENCE TO HANDOVER

Clear Steps for Your Mold Project

You approve the design before manufacturing and test trial samples before the mold is shipped.

See the Full Process
  1. 01

    Product reference

    Share clear part drawings or discuss a physical sample.

  2. 02

    Quote & payment

    Confirm the mold scope and project terms together.

  3. 03

    Design approval

    Review the 3D mold design before manufacturing.

  4. 04

    Manufacture & trial

    The mold is made and trial samples are prepared.

  5. 05

    Test & handover

    Test the samples; the mold ships after your approval.

A typical project is approximately 30–40 days from payment; scope and milestones are confirmed for each project. This is not a guaranteed arrival date.

START WITH WHAT YOU HAVE

What to Prepare for a Mold Quote

Clear product information helps us assess the mold request. Formal quotation requires clear part drawings or an assessable physical sample.

Start a Mold Inquiry
01

Clear 2D or 3D part drawings

Upload STEP / STP or clear 2D files with your inquiry for project review.

02

A physical sample

Tell us about it first; we will discuss how to send the sample.

03

Photos, dimensions or a concept

Start a preliminary discussion; clear drawings or a sample are still needed for a formal quotation.

BEFORE YOU INQUIRE

Frequently Asked Questions

Find the right starting point for your project.

YOUR NEXT MOLD PROJECT

Start with Your Component

Tell us what needs a mold and how we can contact you. Clear part drawings or a physical sample will be reviewed before a formal quote.
